Installing the engine wiring harness for the sensor system 1

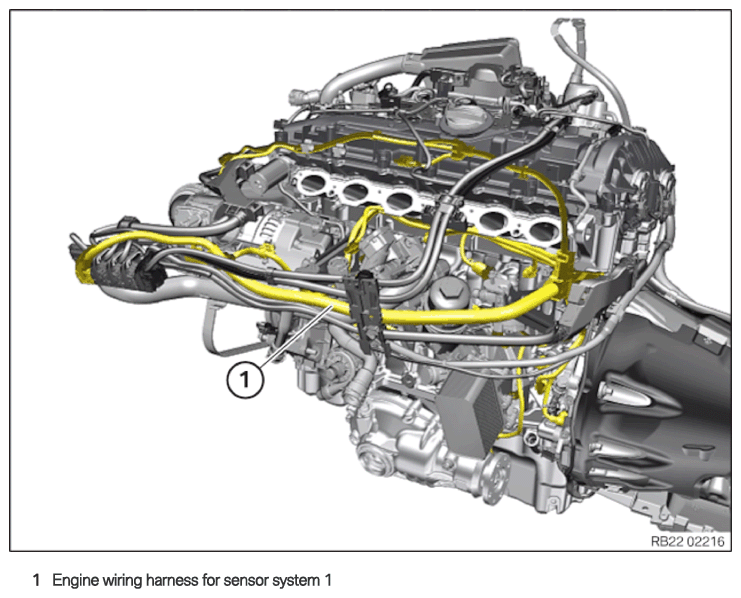

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

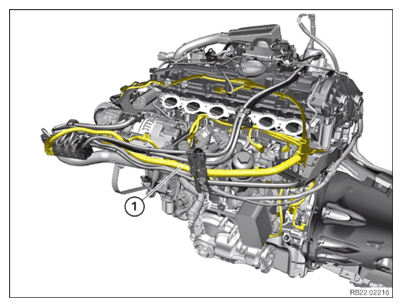

- Guide in and install the engine wiring harness (1) for sensor system 1.

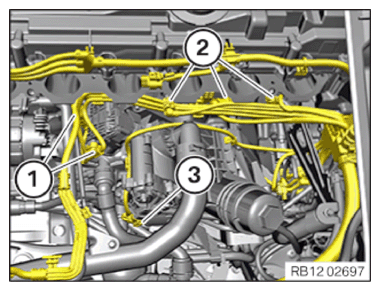

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

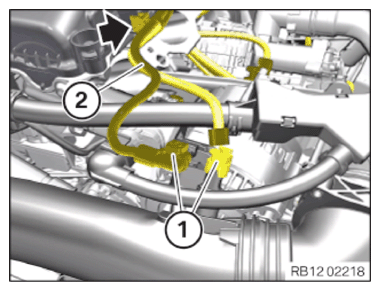

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

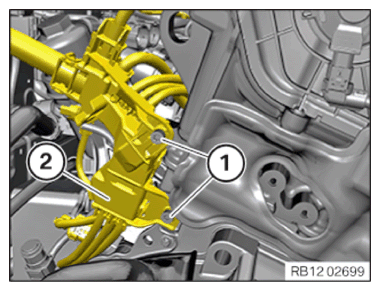

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS

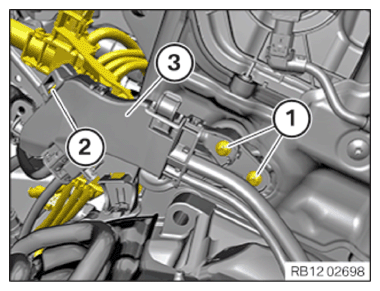

Cable bracket on rear cylinder head/transmission M6 x 20 tightening torque 8 Nm - Feed in and position the wiring harness section (3).
- Secure the lock (2) audibly.
- Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS

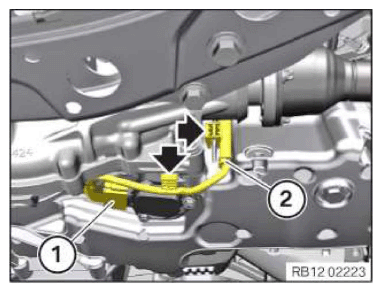

Cable bracket on rear cylinder head/transmission M6 x 20 tightening torque 8 Nm - Connect connectors (3) and lock.
The connectors (3) must engage audibly.
- Connect connectors (2) and lock.
The connectors (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure all clamps.

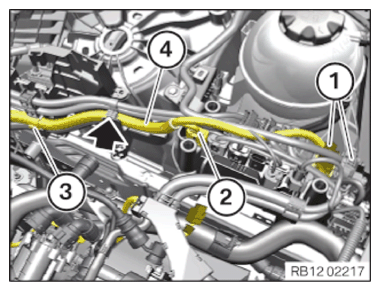

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Guide in and install the engine wiring harness (4) for sensor system 1.
- Guide in and lock cable clip (3).
The cable clip (3) must engage audibly.
- Secure clamps (arrow).
- Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
