Installing the thermostat on the transmission oil lines

Preparing the thermostat for installation

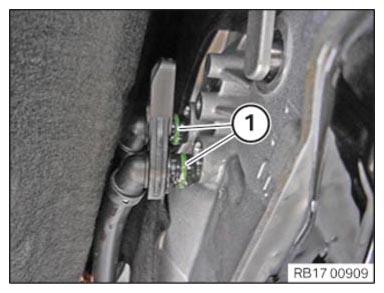

• Check the gaskets (1).
• Replace damaged seals (1).

  Parts:  Seals

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the gaskets (1).
• Replace damaged seals (1).

  Parts:  Seals

Courtesy of BMW OF NORTH AMERICA, INC.

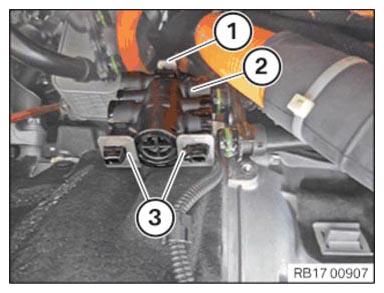

• Insert and install the thermostat (2) in the guides (3).
• Ensure that the locking mechanism (1) engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

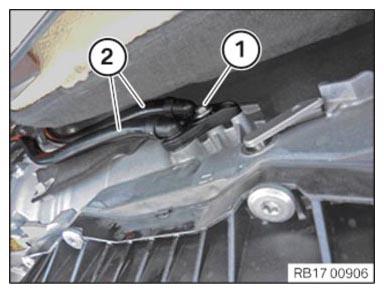

• Feed in and install transmission oil lines (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission oil lines to thermostat/automatic transmission
  M6X25	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

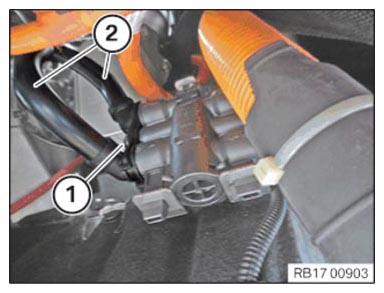

• Feed in and install transmission oil lines (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission oil lines to thermostat/automatic transmission
  M6X25	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

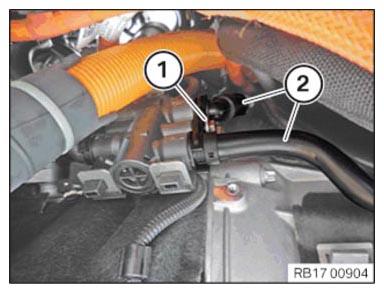

• Feed in and install transmission oil lines (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Transmission oil lines to thermostat/automatic transmission
  M6X25	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

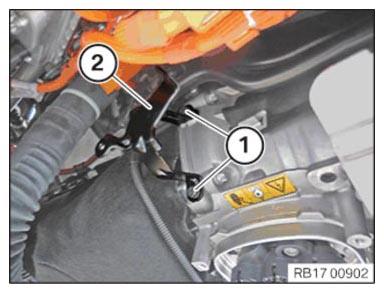

• Version A:

  Insert and install the holder (2).

  Tighten down screws (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Holder of high-voltage cable to automatic transmission
  M6X12	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

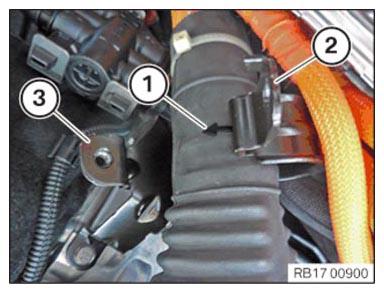

• Version A:

  Position the high-voltage cable (1) on the holder (3) in the direction of the arrow.

  Insert and install the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

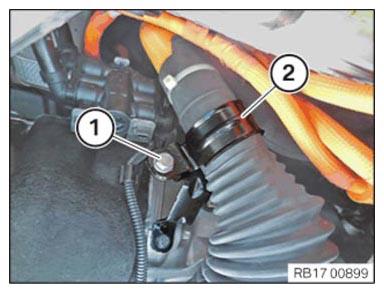

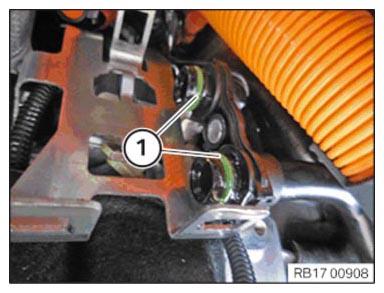

• Version A:

  Position holder (2).

  Tighten down screw (1).

  TIGHTENING TORQUE SPECIFICATIONS



  High-voltage cable to holder
  M6x12/M6x14	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Fasten the high-voltage cable (2) to the holder.

  Tighten nut (1).

  TIGHTENING TORQUE SPECIFICATIONS



  High-voltage cable to holder
  M6x12/M6x14	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

  Position holder (2).

  Tighten down screw (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Holder of high-voltage cable to automatic transmission
  M6X12	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

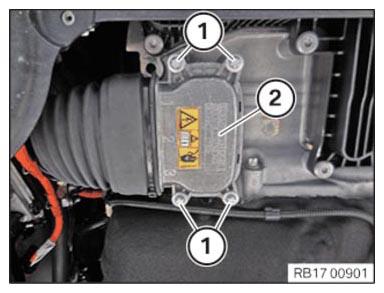

• Guide in and install the high-voltage connector (2).
• Tighten the screws (1) crosswise up to the high-voltage connector (2).
• Tighten screws (1) crosswise.
  TIGHTENING TORQUE SPECIFICATIONS



  High-voltage cable to automatic transmission
  M6X25 Tighten screws in crosswise sequence.	Joining torque	3 Nm
  	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

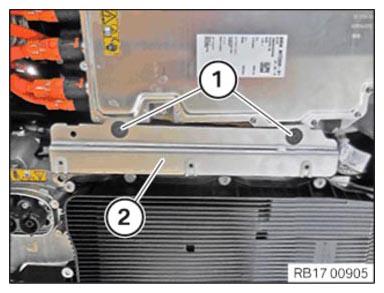

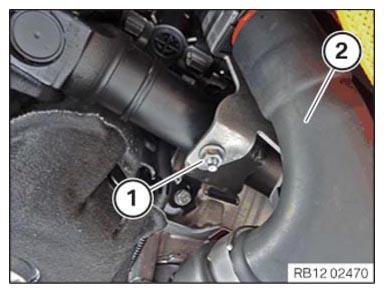

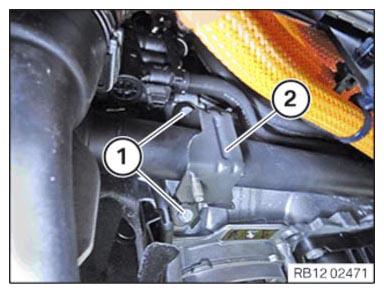

• Feed in and install the heat shield (2).
• Tighten down screws (1).
