Installing the center cowl upper part

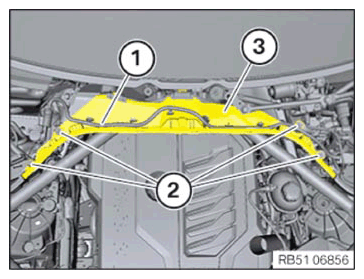

• Installing the center cowl upper part (3).
• Tighten down screws (2).

TIGHTENING TORQUE SPECIFICATIONS

Cowl upper part center to bottom cowl
Screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Use the holders to fasten the wire (1) to the center cowl upper part (3).

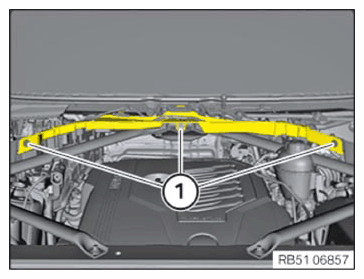

• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Cowl upper part center to bottom cowl
Screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
