Replacing The Rear Door

Preliminary work

• Refer to REMOVE REAR DOOR TRIM .
• Refer to REMOVING THE OUTER WINDOW CHANNEL STRIP AT THE REAR DOOR .
• Refer to REMOVING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR .
• Refer to REMOVE THE WINDOW CHANNEL STRIP FROM INNER REAR DOOR .
• Refer to REMOVING WINDOW FRAME TRIM OF REAR DOOR .
• Refer to REMOVING REAR DOOR WINDOW GLASS .
• Refer to REMOVING MODULE BRACKET ON THE REAR DOOR .
• Refer to REMOVE THE WINDOW FRAME TRIM OF THE REAR DOOR (C-PILLAR) .
• Refer to REMOVING THE RUBBER WINDOW SEAL FOR THE DOOR WINDOW GLASS .
• Refer to REMOVING REAR DOOR WINDOW GLASS (FIXED) .
• Refer to REMOVE THE REAR OUTSIDE DOOR HANDLE .
• Refer to REMOVING THE DOOR LOCK ON THE REAR DOOR .
• Refer to REMOVE THE REAR OUTER DOOR HANDLE SUPPORT .
• Refer to REMOVE DOOR STOP .

Further information is available.

Prerequisite

New part is painted.

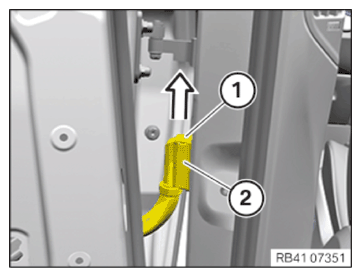

• Pull the lock (1) to the top and disconnect the plug connection (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

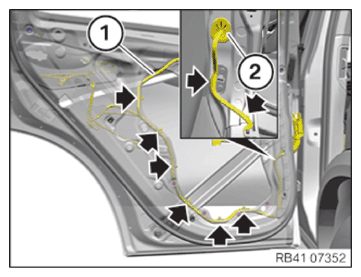

• Unclip wiring harness (1) at marked positions (arrows).
• Loosen grommet (2).
• Feed the wiring harness (1) out of the door.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Mechanical effects  .
  Paint damage  .

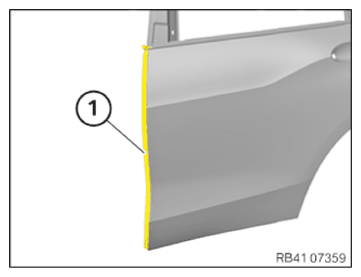

  • Mask those working areas at risk with yellow plastic adhesive tape.
  • Remove and install heavy or bulky components with the aid of another person/other persons.

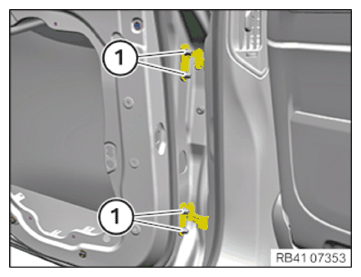

• Release the domed cap nuts (1) and remove the door.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position new door on door hinges.

  Tighten spherical nuts (1).

  TIGHTENING TORQUE SPECIFICATIONS



  Rear door to door hinge
  Nut and domed ball
  	tightening torque  19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully close the door and check for bodywork contact, reposition door if necessary.
• Insert the wiring harness (1) into the rear door.
• Mount the grommet (2) and check for correct fit.
• Clip in wiring harness (1) at the marked positions.

  Courtesy of BMW OF NORTH AMERICA, INC.

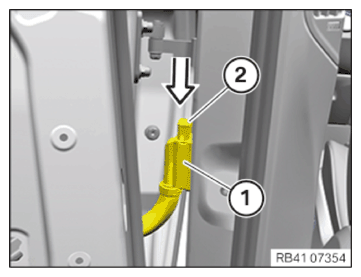

• Connect the connectors (1) and press down the locking mechanism (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

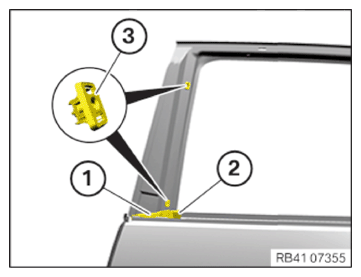

• Remount the seals (1) and (2).
• Remount the clips (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Depending on equipment version:

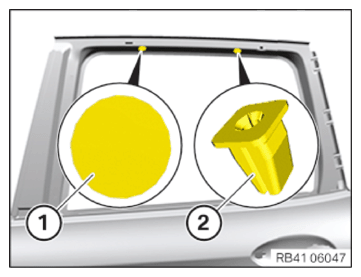

  Renew 2 x sealing film (1) or remount 2 x expansion nuts (2).

  Parts:  Sealing film

  Bond the sealing film on the new door.

  Courtesy of BMW OF NORTH AMERICA, INC.

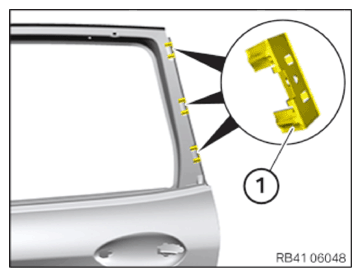

• Remount the clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

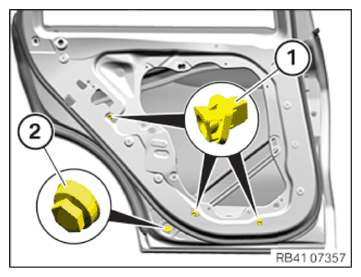

• Remount plug-in fasteners (1).
• Remount the expansion nut (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

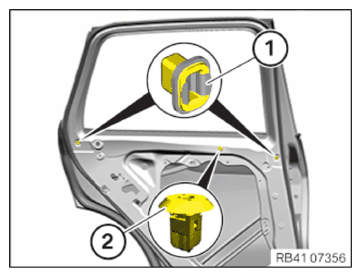

• Remount expansion nuts (1).
• Remount the protective cap (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

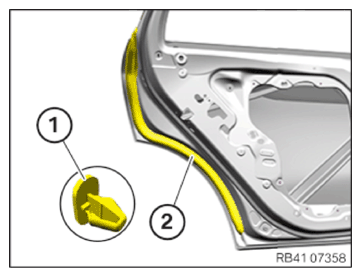

• Release the clips (1) on the seal and remount the seal (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Notes on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
  For additional information see 5100... NOTES ON COMPONENT BONDING WITH ADHESIVE TAPE (ALL X5 MODELS, 2019-2022) .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clean bonding surface (1) using solvent cleaner R2.
  CONSUMABLE SPECIFICATIONS



  Cleaning agent R2

  500ml

  83190417324

• Renew the gap seal (1).

  Parts:  Gap seal

  Glue the gap seal on to the new door.

Follow-up work

• Refer to BOND THE TEMPLATES FOR DOOR WEATHER STRIPS ON THE INNER DOOR PANEL .
• Refer to MOUNTING THE REAR DOOR WEATHER STRIP .
• Refer to INSTALLING THE DOOR STOP .
• Refer to INSTALL THE REAR OUTSIDE DOOR HANDLE SUPPORT .
• Refer to INSTALL THE REAR DOOR LOCK .
• Refer to INSTALL THE REAR OUTER DOOR HANDLE
• Refer to INSTALLING REAR DOOR WINDOW GLASS (FIXED) .
• Refer to INSTALL THE RUBBER WINDOW SEAL FOR THE DOOR WINDOW GLASS .
• Refer to INSTALL THE WINDOW FRAME TRIM OF THE REAR DOOR (C-PILLAR) .
• Refer to PRESERVING THE REAR DOOR .
• Refer to INSTALL THE MODULE BRACKET ON THE REAR DOOR .
• Refer to INSTALLING REAR DOOR WINDOW GLASS .
• Refer to INSTALLING WINDOW FRAME TRIM OF REAR DOOR .
• Refer to INSTALL THE WINDOW CHANNEL STRIP OF THE INNER REAR DOOR .
• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR .
• Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
• Refer to INSTALLING REAR DOOR TRIM PANEL .
