Install the rubber window seal for the door window glass

Prerequisite

Door window glass is fully open.

• Replace the rubber window seal.

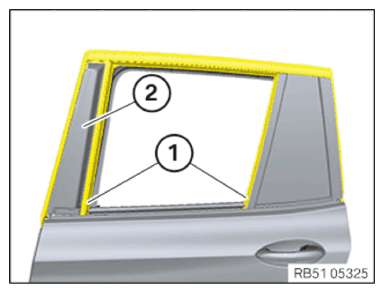

• Treat the rubber window seal (1) with a suitable lubricant.
• Roughly position rubber window seal (1) at the window frame.
• Fit rubber window seal (1) on the window frame.

  Courtesy of BMW OF NORTH AMERICA, INC.

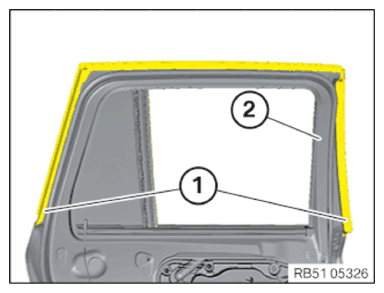

• Insert rubber window seal (1) into the window guide rails.
• Secure rubber window seal (1) correctly on the window frame (2).

Courtesy of BMW OF NORTH AMERICA, INC.
