Install the module bracket on the rear door

Check

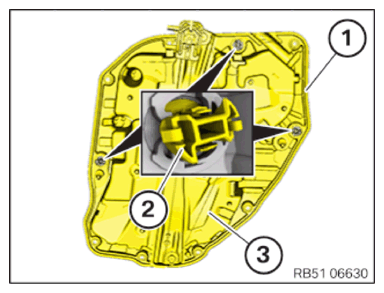

• Check the peripheral seal (1) on the module bracket (3) for damage.
• Check the locks (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1) on the module bracket (3) is damaged.

Measure

• Replace the module bracket (3).

Result

» The locks (2) are damaged.

Measure

• Replace the locks (2).

• Correctly position the module bracket (3) and close the locking mechanisms (2).

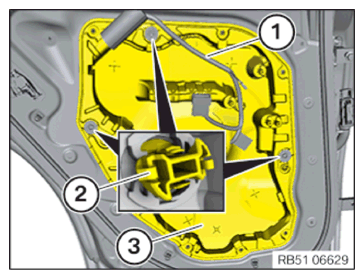

• Clip in the vehicle wiring harness (1) on the module bracket (3) and connect and lock the connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

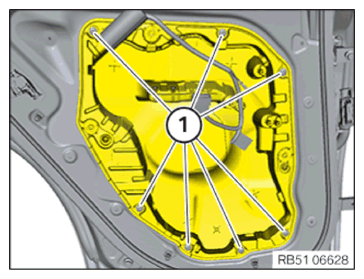

• Tighten the screws (1).

Module bracket to door
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

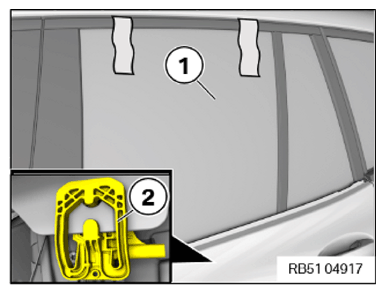

• Release the adhesive tape and manually lower the door window glass (1) until it engages in the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR DOOR TRIM PANEL  .
• Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .

Check

• Check the peripheral seal (1) on the module bracket (3) for damage.
• Check locks (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The seal (1) on the module bracket (3) is damaged.

Measure

• Replace the module bracket (3).

Result

» The locks (2) are damaged.

Measure

• Replace the locks (2).

• Correctly position the module bracket (3) and close the locking mechanisms (2).
• Clip in the vehicle wiring harness (1) on the module bracket (3) and connect and lock the connectors.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1).

Module bracket to door
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR DOOR TRIM PANEL  .
