Installing rear door window glass (fixed)

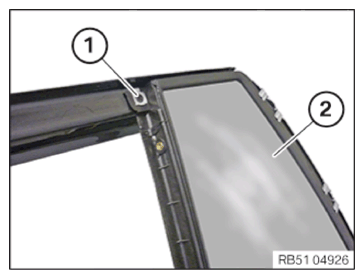

• Insert the door window glass (2) in the door.
• Insert the door window glass (2) on top in the door.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

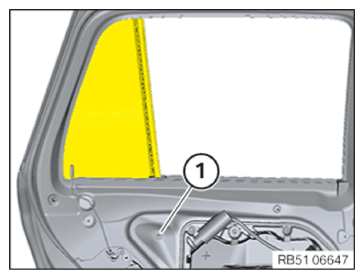

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

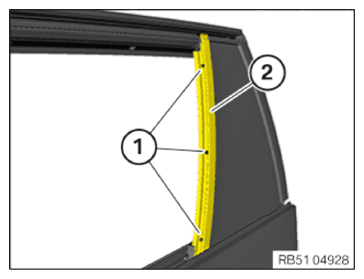

• Insert the window guide rail (2) in the door.
• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

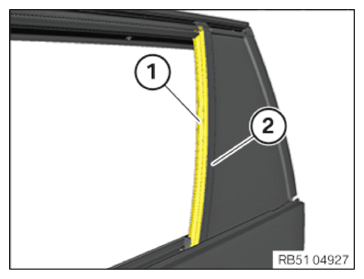

• Mount the rubber window seal (1) in the window guide rail (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER ON THE INSIDE OF THE WINDOW FRAME AT THE REAR .
• Refer to INSTALLING THE WINDOW CHANNEL STRIP OF THE INNER REAR DOOR .
• Refer to INSTALLING REAR DOOR TRIM PANEL  .
• Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
