Installing the right throttle body
Replacing the seal on the right intake system

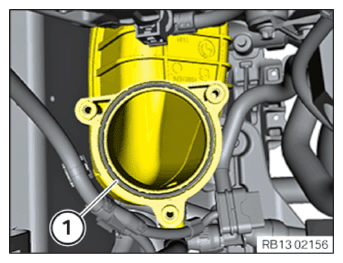

- Replace the seal (1)
.
Parts: Gasket.
Prepare the throttle body
- Replace the seal (1)
.
Parts: Seal

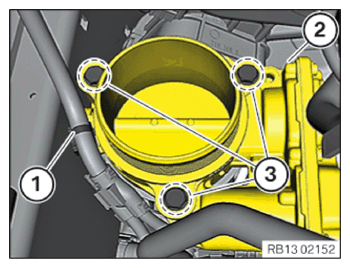

- Position throttle body (2) .
- Tighten down screws (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Throttle body to intake manifold | ||
|---|---|---|
| screw | Tightening torque | 7 Nm |
- Attach (1)
the cable clip.
- Raise vehicle.

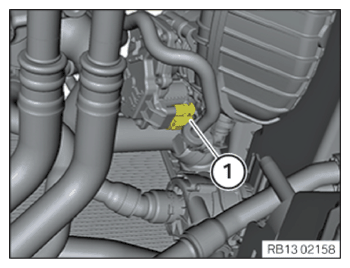

- Check the plug connection (1) for coolant residue. If necessary, clean with compressed air.
- Connect plug connection (1) and lock.
Follow-up work
- Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
- Refer to CLOSING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE LOWER LEFT FRONT WHEEL ARCH COVER .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to INSTALLING OIL FILLER NECK .
- Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE LEFT UNFILTERED-AIR DUCT .
- Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING THE FRONT-END STRUT .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
