Installing engine ventilation line of cylinder bank 1
NOTE:

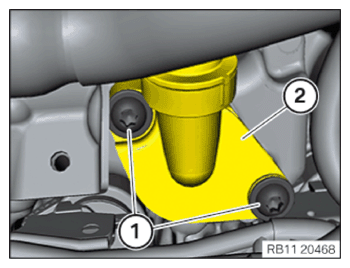

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Insert the engine ventilation line (2) and turn it counter-clockwise.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Engine ventilation line | ||
|---|---|---|
| screw | Tightening torque | 9.3 Nm |
Follow-up work
- Refer to FASTENING THE ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
- Refer to INSTALLING BRACKET FOR RIGHT INTAKE SILENCER .
- Refer to INSTALL RIGHT INTAKE SILENCER HOUSING .
- Refer to INSTALLING ACOUSTIC COVER .
