Installing acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

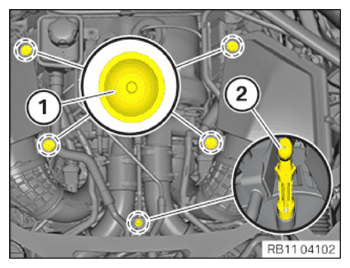

Check the detent pin (2) for damage, if necessary replace the acoustic cover.
Check acoustic cover for correct seating of the rubber mount (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Check rubber mount (1) for correct fit.
Check the detent pin (2) for damage, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip the acoustic cover (1) in the holder.

Courtesy of BMW OF NORTH AMERICA, INC.
