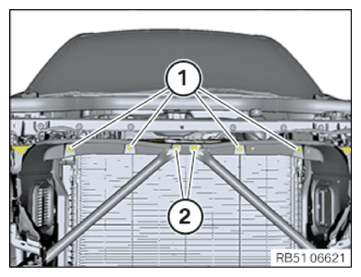

Install the front top cross connection

• Attach the front top cross connection (2).
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Top front cross connection to hood lock support
  screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

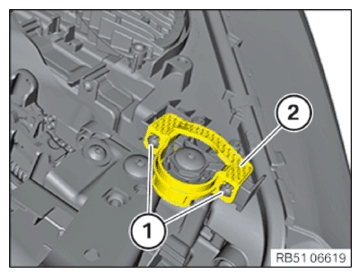

• Carefully feed in the holder (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Holder on headlight
  screw	Tightening torque	1.9 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

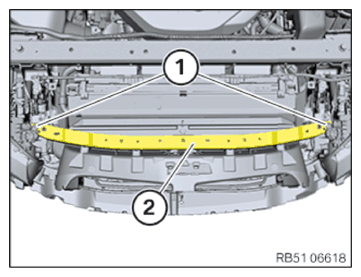

• Tighten screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Front reinforcement strut
  screw	Tightening torque	24 Nm

• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSERT TOPPING AUTOMATIC AIR FLAP CONTROL .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT  and INSTALL THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to PARTIALLY INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to PARTIALLY INSTALLING THE LEFT FRONT AND RIGHT WHEEL ARCH TRIM .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
