Removing the engine wiring harness for sensor system 1
WARNING:
Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Securing engine to the installation position.
- For additional information see: SECURING ENGINE IN INSTALLATION POSITION (X4 xDrive30i 2019-2021) , or MOVING THE ENGINE TO THE INSTALLATION POSITION (X4 xDrive30i 2022-) .
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure specific weight compensation on the vehicle.
Preliminary work
- Refer to DEACTIVATING ELECTRICAL SYSTEM .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING RESONATOR .
- Refer to REMOVING CLEAN AIR PIPE .
- Refer to REMOVING CHARGE AIR LINE .
- Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
- Refer to MOVING THE HOOD TO THE SERVICE POSITION .
- Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
- Refer to REMOVING THE SEAL FOR THE HOOD REAR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING THE COWL COVER .
- Refer to REMOVING THE FIREWALL UPPER PART .
- Refer to REMOVING ACOUSTIC COVER AT REAR .
- Refer to REMOVING THE IGNITION COIL .
- Refer to REMOVING FUEL DELIVERY LINE .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING REAR UNDERBODY PROTECTION .
- Refer to INSTALLING THE COVER PANEL FOR THE FRONT AXLE LEFT AND RIGHT .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
- Refer to REMOVING TANK VENT VALVE .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING CONTROL UNIT BRACKET .
- Refer to REMOVING THE INTAKE PLENUM .
- Refer to BRINGING THE ENGINE TO THE INSTALLATION POSITION .
- Refer to DETACHING STEERING SHAFT AT BOTTOM FROM STEERING GEAR .
- Refer to RELEASING THE EPS WIRING HARNESS FROM THE ELECTROMECHANICAL STEERING GEAR .
- Refer to DETACHING THE LINE CONNECTION OF THE RIDE HEIGHT SENSOR .
- Refer to IF INSTALLED: DISCONNECTING THE VACUUM LINE OF THE ENGINE MOUNTS .
- Refer to RELEASING THE ELECTRIC COOLANT PUMP AND COOLANT HOSES FROM THE FRONT AXLE SUPPORT .
- Refer to DETACHING THE ANTI-ROLL BAR LINK FROM THE ANTI-ROLL BAR ON THE RIGHT AND LEFT .
- Refer to RELEASING THE ENGINE SUPPORT BRACKETS ON THE LEFT AND RIGHT ENGINE MOUNTS .
- Refer to RAISING THE ENGINE WITH THE ENGINE BRIDGE .
- Refer to PREPARING THE SPECIAL TOOL .
- Refer to SUPPORTING THE FRONT AXLE SUPPORT .
- Refer to SECURING THE FRONT AXLE SUPPORT AT THE SPECIAL TOOL .
- Refer to DETACHING AND LOWERING THE FRONT AXLE SUPPORT .
- Refer to REMOVING THE ACOUSTIC COVER OF THE OIL SUMP .

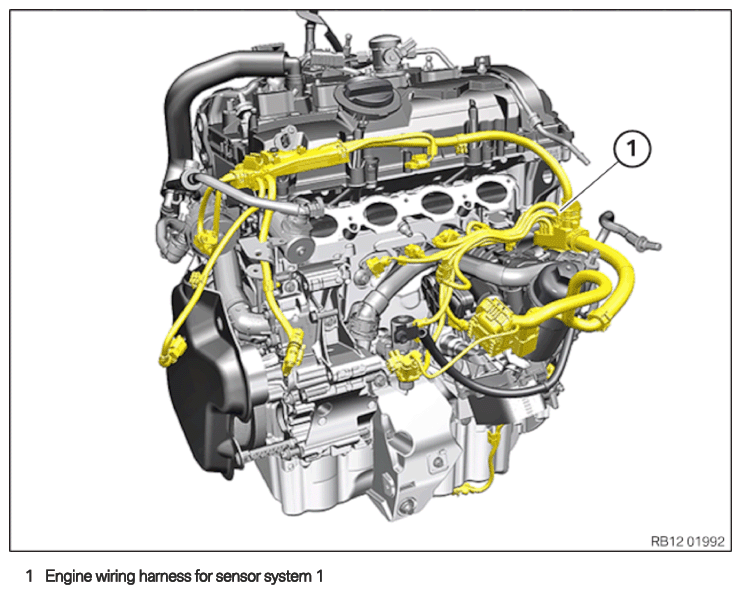

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
- Feed out the wiring harness section (1)
for sensor system 1 from the bracket (2)
and place to one side.
- Unlock and disconnect plug connections (1) .
- Unlock and disconnect plug connections (2) .
- Unlock plug connection (3) and disconnect.
- Unlock plug connection (4) and disconnect.
- Loosen the clamp (arrow).
- Feed out the wiring harness section (5)
for sensor system 1 and place to one side.
- Loosen screws (1) .
- Unlock the lock (arrow).
- Remove the wiring harness section (2)
and put to one side.
- Loosen screws (1)
.
- Unlock and disconnect plug connections (1) .
- Feed out the wiring harness section (2)
for sensor system 1 and place to one side.
- Unlock plug connection (1) and disconnect.
- Release the holder (arrows).
- Feed out the wiring harness section (2)
for sensor system 1 and place to one side.
- Remove the wiring harness section (1) and put to one side.
- Loosen screw (2) .
- Unlock plug connection (3)
and disconnect.
- Feed out the wiring harness section (1) for sensor system 1 and remove.
