Install the wiring harness section of the transmission wiring harness

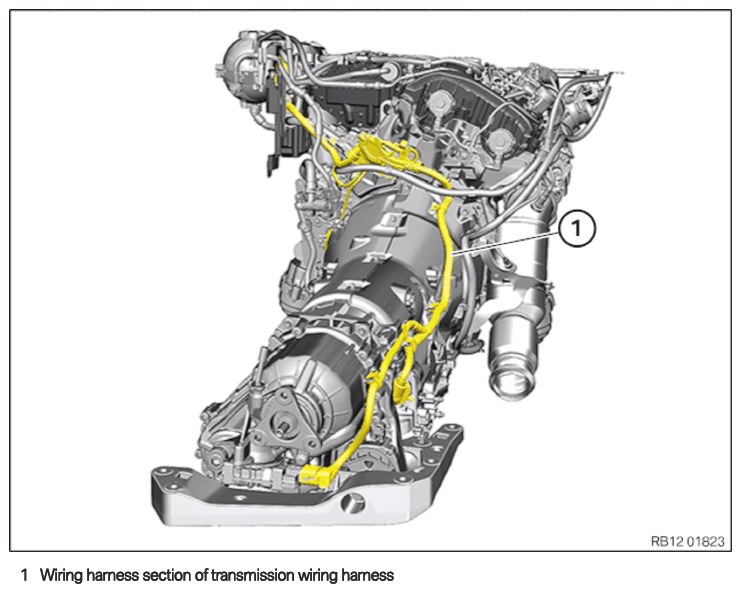

Wiring harness section of transmission wiring harness
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Insert and install the wiring harness (1)
for the transmission module.
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (2) of the supply module.
- Secure clamps (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
Fastening the transmission
- Move the transmission (3) to the installation position.
- Replace screws (2)
.
Parts: Screws
- Tighten down screws (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Transmission cross member to body | ||
| M8 | Tightening torque | 19 Nm |
- Secure the cable with the clamp (1) .
- Loosening the luggage strap (1) .
- Remove special tools 2 219 012 and 0 495 498 (23 4 050) .
- Secure clamps (2) .
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (1) of the transmission wiring harness.
- Secure the clamps (arrows).
- Feed in and install the wiring harness section (2) of the transmission wiring harness.
- Secure clamps (arrow).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the wiring harness section (3) of the transmission wiring harness.
- Make sure the locking mechanism (2) engages audibly.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Cable bracket on rear cylinder head/transmission | ||
| M6 x 20 | Tightening torque | 10 Nm |
- Secure the clamps (arrows).
Follow-up work
- Refer to IF INSTALLED: SCREWING DOWN TRANSMISSION SUPPORT BRACKET .
- Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
- Refer to INSTALLING THE HEAT SHIELDS .
- Refer to INSTALLING THE RETAINING PLATES .
- Refer to SECURING UNDERBODY PANELING ON LEFT AND RIGHT SIDE .
- Refer to INSTALLING EXHAUST SYSTEM .
- Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING CONTROL UNIT BRACKET .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
