Removing the lower trim
Preliminary work
- Refer to REMOVING THE LEFT AND RIGHT FLAPS FROM THE LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to REMOVING BOTH LOWERING D-PILLAR TRIM PANELS .
- Refer to REMOVING THE LEFT AND RIGHT TAIL LIGHT FROM THE SIDE PANEL .
- Refer to REMOVING TRIM FROM THE WATER CHANNEL .
- Refer to REMOVING REAR BUMPER PANEL .

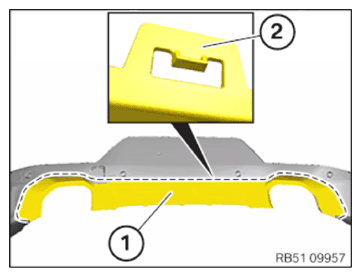

- Release and remove the trim (1) from all the detents (2) along the dotted line.
