Removing the left and right tail light from the side panel

Preliminary work

• Refer to REMOVING THE LEFT AND RIGHT FLAPS FROM THE LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to REMOVING BOTH LOWERING D-PILLAR TRIM PANELS .

• Removing the tail light on the side panel

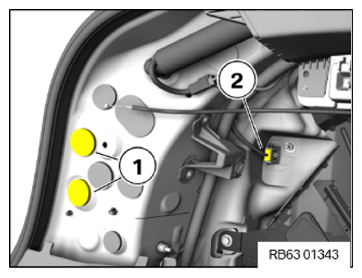

• Remove plug (1)  .
• Unlock plug connection (2)  and disconnect.

  Courtesy of BMW OF NORTH AMERICA, INC.

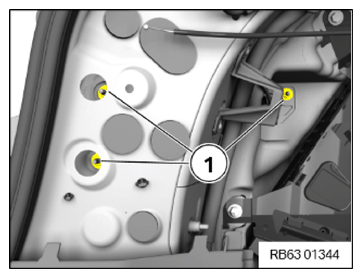

• Loosen nuts (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

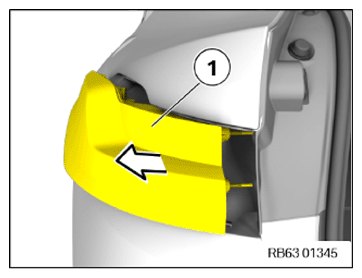

• Remove the tail light on the side panel (1)  in direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.
