Fastening the engine support brackets to the engine mounts on the left and right

• Tighten screw (1) of the right engine mount from the top using a standard tool.
  TIGHTEN TORQUES SPECIFICATION



  Engine mount to engine support bracket
  M12	Tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Keep all the standard tools ready.

  Number	Description
  1	Standard torque wrench
  2	Swivelling extension
  3	External Torx E14

  Courtesy of BMW OF NORTH AMERICA, INC.

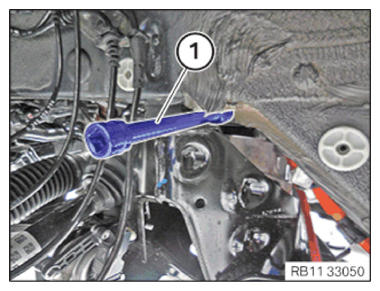

• Position the standard tool (1).

Courtesy of BMW OF NORTH AMERICA, INC.

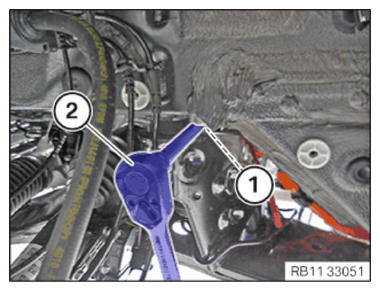

• Tighten the screw (1) of the left engine mount laterally with a standard tool (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install FUEL DELIVERY LINE .
• Install IGNITION COIL .
• Install the left and right hood gasket SEAL .
• Install the top left and right engine compartment COVER .
• Install rear ACOUSTIC COVER .
• Install ACOUSTIC COVER .
• Install the upper part COWL .
• Install windshield panel COVER .
• Install left and right WIPER ARM .
• Install the front hood rear SEAL .
• Install the rear right engine compartment COVER .
• Install the rear left engine compartment COVER .
• Install the rear section of the front wheel arch COVER .
• Install front wheel arch TRIM .
• Install the left steering assembly COVER .
• Attach the front left WHEEL .
• Install rear UNDERBODY PROTECTION .
• Install the center UNDERBODY PROTECTION .
• Connect system battery negative BATTERY CABLE .
• Install trunk battery COVER .
• Connect the (12 v battery) negative BATTERY CABLE .
• Activate HIGH-VOLTAGE SYSTEM .
• Install flap in right luggage compartment TRIM PANEL .
• Take hood out of the SERVICE POSITION .
