Installing acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover.
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover.

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

Check all rubber mounts (1) of the acoustic cover (2) for a correct seat.

Courtesy of BMW OF NORTH AMERICA, INC.

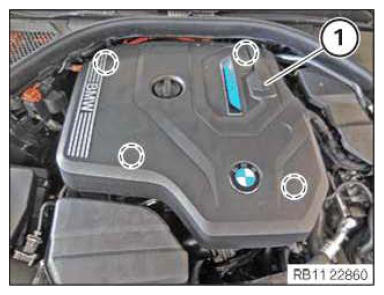

Clip in the acoustic cover (1) in the marked areas.

The acoustic cover (1) must audibly engage into place.

Courtesy of BMW OF NORTH AMERICA, INC.
