Installing the bumper cover lower section

• Guide in tether.

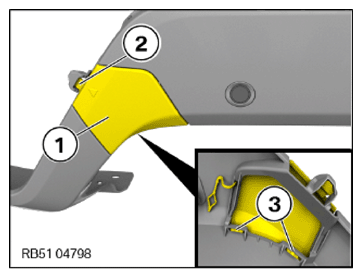

• Clip cover (1) of towing eye into detents (2) and (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

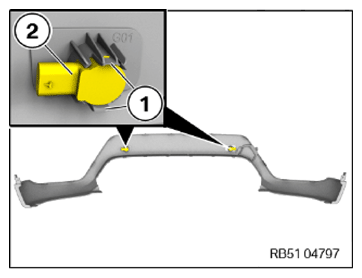

• Slightly spread apart the detents (1) and insert the ultrasonic sensors (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

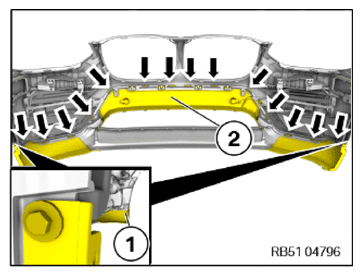

• Clip bumper cover lower section (2) into detents.
• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Bumper trim panel lower part
  Screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

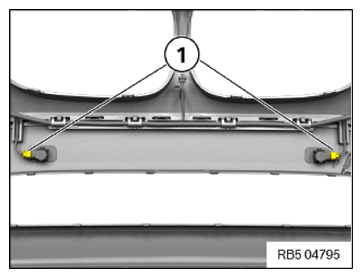

• Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the front license plate number PLATE BASEPLATE .
• Install the front bumper cover ORNAMENTAL GRILLE .
• Install front bumper COVER .
• Partly install the front sections of both front wheel ARCH COVERS .
• Partially install both front wheel ARCH TRIMS .
• Install front ORNAMENTAL GRILLE .
