Install bumper cover upper section at front

• Slip fog light support (2) into guide (4) of bumper cover upper section and clip into detents (3).
• Clip in the expanding rivet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

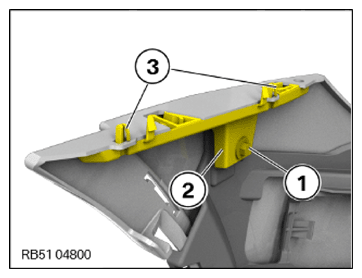

• Clip bumper brackets (2) into detents (3).
• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Bumper bracket, side front
  Screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

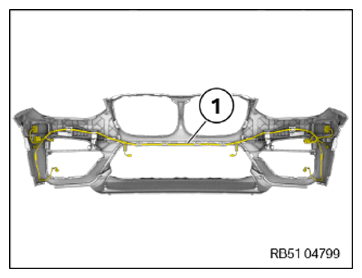

• Insert vehicle wiring harness (1) into guides of bumper cover upper section.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the front bumper cover side left and right ORNAMENTAL GRILLE .
• Install the left and right front TRIM STRIP .
• Install the lower section BUMPER COVER .
• Install the front bumper cover ORNAMENTAL GRILLE .
• Install front BUMPER COVER .
• Partly install the front sections of both front wheel ARCH COVERS .
• Partially install both front wheel ARCH TRIMS .
• Install front ORNAMENTAL GRILLE .
