61 34... Removing and installing/replacing 12-V power socket

Special tools required:

• 61 0 250

The following 12-V power sockets can be installed depending on the equipment:

Necessary preliminary tasks:

• Refer to REMOVING FRONT STORAGE COMPARTMENT
• Refer to REMOVING REAR CENTRE CONSOLE TRIM
• Refer to REMOVING TRIM FROM STORAGE COMPARTMENT, CENTRE
• Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

Removal:

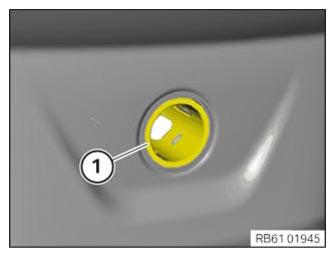

Front storage compartment:

Remove power socket (1) with special tool 61 0 250.

See last operation.

Courtesy of BMW OF NORTH AMERICA, INC.

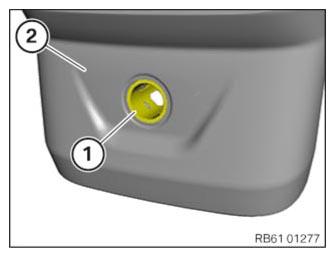

Rear centre console trim:

Remove power socket (1) using special tool 61 0 250 from the trim of centre console, rear (2).

See last operation.

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Put your hand behind the right luggage compartment wheel arch panel.

Detach connector (1) from power socket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Fold up the protective cap over power socket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Remove power socket (1) using special tool 61 0 250.

See last operation.

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out 12-V power socket from housing with special tool 61 0 250 until connector is at bottom of light ring.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Front storage compartment:

Clip in connector socket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Rear centre console trim:

Fit power socket (1) into the trim of rear centre console (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Fit power socket (1) in mounting.

Courtesy of BMW OF NORTH AMERICA, INC.

Luggage compartment:

Connect connector (1) to power socket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING THE FRONT STORAGE COMPARTMENT
• Refer to INSTALLING REAR CENTRE CONSOLE TRIM
• Refer to INSTALLING TRIM FROM STORAGE COMPARTMENT, CENTRE
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH PANEL ON RIGHT
