51 16 150 Removing and installing (replacing) front storage compartment

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove CENTER CONSOLE COVER

Removal:

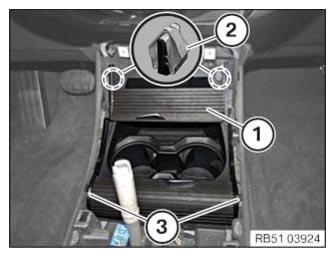

Lift storage compartment (1) upwards out of clamps (2).

Fold storage compartment (1) towards rear until it can be lifted out of guides (3).

Disconnect plug connections and remove storage compartment (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Remount 12 V POWER SOCKET .

Attach storage compartment (1) and connect plug connections.

Guide storage compartment (1) into guides (3) and fold forwards.

Engage storage compartment (1) at top in clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Fit CENTER CONSOLE COVER
