51 16 163 Removing and installing/replacing rear center console cover
WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Removal:

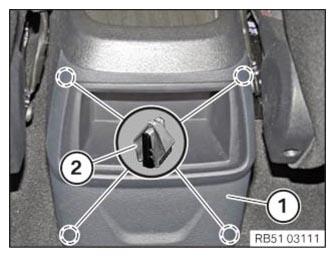

Lever out and remove trim (1) from the clamps (2) using special tool 00 9 325
.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
Engage trim (1) in clamps (2).
Courtesy of BMW OF NORTH AMERICA, INC.
|
