51 16... Removing and installing (replacing) the center storage compartment trim

WARNING: This page is about a different car, the 2019 BMW X1, 2018 BMW X1, 2017 BMW X1, and 2016 BMW X1. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Removal:

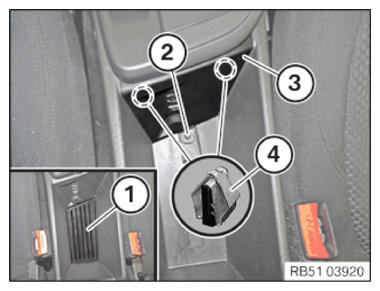

Lever out and remove the insert (1) using special tool 00 9 327 .

Release screw (2).

Lever out the trim (3) from the clamps (4) towards the rear using special tool 00 9 327 .

Disconnect the plug connections and remove the trim (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount 12 V POWER SOCKET .
REMOUNT USB AUDIO INTERFACE CONNECTING SOCKET .

Installation:

Install the trim (3) and connect the plug connections.

Engage the trim (3) with the clamps (4).

Tighten screw (2).

Tightening torque 51 16 7AZ .

Insert the insert (1).
