Remove left high pressure pump

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
Refer to RELEASING LEFT FRONT-END STRUT .
Refer to RELEASING THE RIGHT FRONT-END STRUT .
Refer to REMOVING FRONT CROSS CONNECTION .
Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
Refer to REMOVING THE REAR TOP CROSS CONNECTION .
Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
Refer to PARTIALLY REMOVING THE COOLANT EXPANSION TANK .
Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
Refer to REMOVING IGNITION COIL OF CYLINDER BANK 2 .
Refer to REMOVING RAIL FROM BANK 2 .

NOTE: RISK OF DAMAGE
Contaminant or foreign body.
Contamination can result in malfunctions, loss of function or leaks.

Adhere to the utmost cleanliness.
Protect components from contamination e.g. by covering.
Close off line connections with seal plugs.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

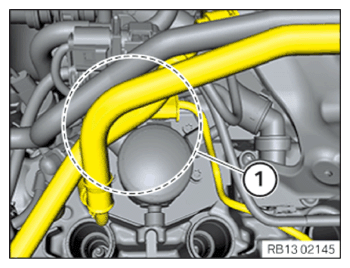

Press the lines (1) to the side.

Courtesy of BMW OF NORTH AMERICA, INC.

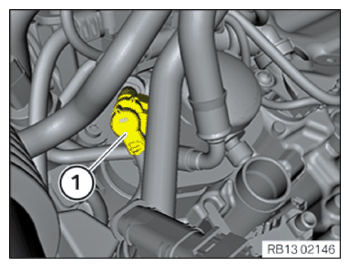

Unlock plug connection (1) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially disengage the fuel supply line

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Press the coolant line (2) to the side.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

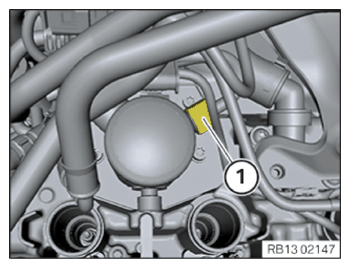

Loosen nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

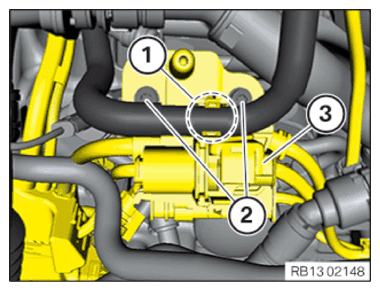

Removing the holder with the vehicle wiring harness for the sensor system of cylinder bank 2

Loosen screws (2).
Disengage the coolant ventilation line in area (1).
Unlock plug connection (3) and disconnect.
Place aside the holder with the vehicle wiring harness for the sensor system.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
The high pressure pump is preloaded by the piston spring and must be removed by alternately unscrewing the screws without tilting.
Before installing the high pressure pump, the cam of the high pressure pump drive must be turned to bottom dead center.
If necessary, turn the engine in the direction of engine rotation on the central bolt of the crankshaft, otherwise there is a risk of piston breakage of the high pressure pump.

Courtesy of BMW OF NORTH AMERICA, INC.

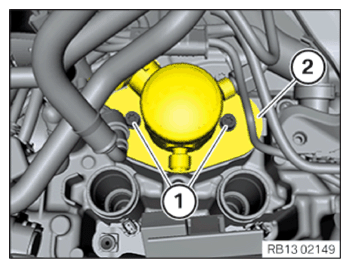

Loosen screws (1).
Remove the high pressure pump (2).
