Remove the windshield
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: 51 31... WINDOW GLASS REMOVAL USING "SPIDER" .
Perform window removal using the "spider".
For additional information see: 51 31... WINDOW GLASS REMOVAL USING "SPIDER" .
Preliminary work
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE COVERS FOR THE INTERIOR REARVIEW MIRROR .
- Refer to REMOVING INSIDE MIRROR .
- Refer to REMOVING THE KAFAS CAMERA .
- Refer to DISCONNECTING RAIN-LIGHT-SOLAR-CONDENSATION SENSOR .
- Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING LEFT AND RIGHT WIPER ARM .
- Refer to REMOVING LEFT AND RIGHT GUTTER STRIP OF THE WINDSHIELD .
- Refer to REMOVING WINDSHIELD PANEL COVER .
NOTE:
TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: 51 31... WINDOW GLASS REMOVAL USING "SPIDER" .
Perform window removal using the "spider".
For additional information see: 51 31... WINDOW GLASS REMOVAL USING "SPIDER" .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

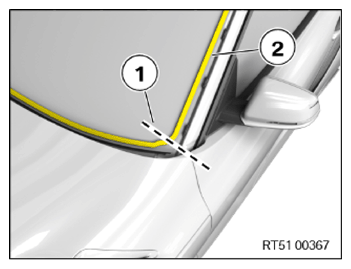

- Tape off body in area of piercing point with fabric adhesive tape.
- Push the thread (1) through the adhesive bead (2) along the line from the inside.
- Cut out the windshield with the spider.NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

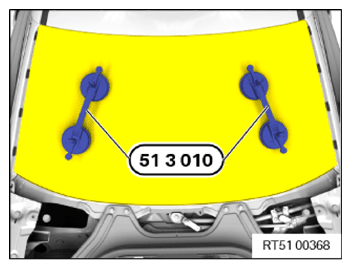

- Remove windshield with the special tool 0 492 609 (51 3 010)
.
