Install the control unit for the contactless trunk opening

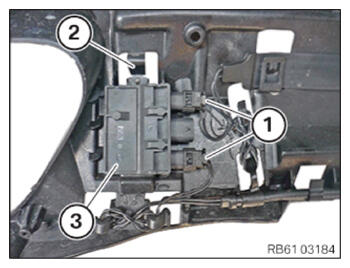

- Connect all connectors (1).
The connectors must engage audibly.
- Clip in and install the control unit (3) from the top.
- Check that the detent (2) is fitted correctly.
Follow-up work
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING REAR PANEL .
- Refer to PARTIALLY INSTALLING THE REAR LEFT AND RIGHT WHEEL ARCH COVERS .
- Refer to INSTALLING BOTH EXHAUST COVERS .
- Refer to INSTALLING BOTH SIDE REAR TRIM STRIPS .
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT (PARTIALLY REMOVED) .
- Refer to INSTALLING BOTH LEDs IN THE CARGO AREA .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
