Take engine out of installation orientation

• Turn the special tool 2 361 506 (00 6 103) to lower the engine until it lies completely on the engine mounts.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed out the special tool 0 490 567 (11 0 020) at the special tool 2 459 012 and set aside.
• Feed out the special tool 0 490 567 (11 0 020) at the engine mounting bracket (1) at the rear and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the engine bridge (1) with the help from another person.

Courtesy of BMW OF NORTH AMERICA, INC.

• Keep all the standard tools ready.

  Number	Description
  1	Standard torque wrench
  2	Swivel extension
  3	External Torx socket E14

  Courtesy of BMW OF NORTH AMERICA, INC.

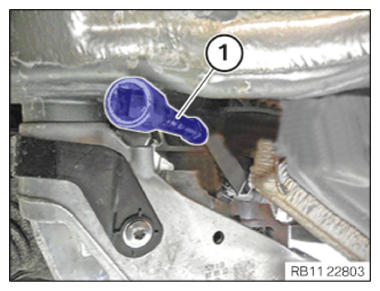

• Position the standard tools (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

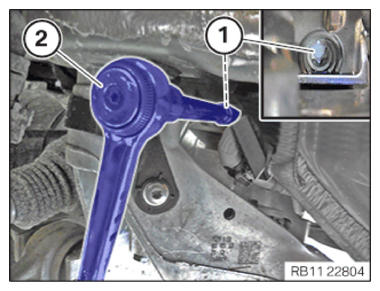

• Tighten the screw (1) of the left engine mount with a standard tool (2) at side.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1) of the right engine mount from the top with a standard tool.

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen the screws (1) from the special tool  2 459 012  .
• Guide out and remove the special tool 2 459 012 on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE UNIVERSAL JOINT TO STEERING GEAR .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to ATTACHING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE SIDE HOOD SEAL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING CLEAN AIR PIPE, TOP .
• Refer to INSTALLING INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
