Installing the center cowl upper part

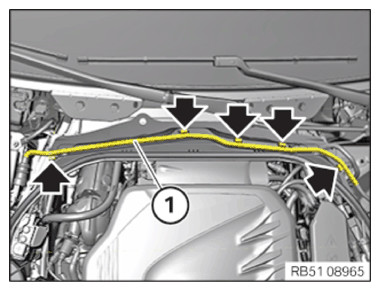

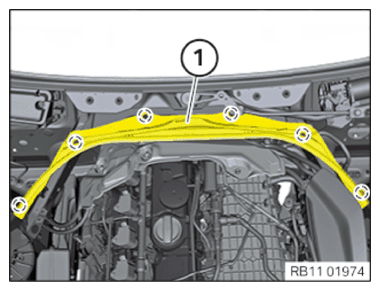

- Position the center cowl upper part (1).
- Tighten the bolts in the marked areas.
TIGHTENING TORQUE SPECIFICATIONS
| Cowl upper part to bottom cowl |
| |
Tightening torque |
3 Nm |
