Install clean air pipe, top

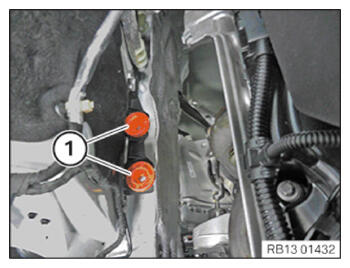

- Check rubber mount (1) for correct fit.

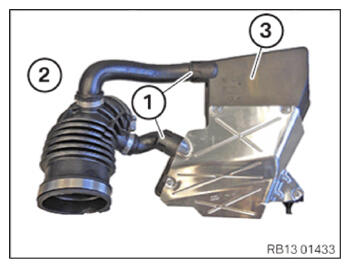

- Insert and install the clean air pipe on top (2) on the resonator (3).
The locks (1) must engage audibly.

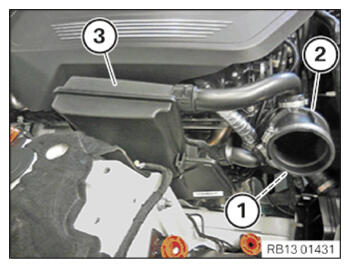

- Insert and install the clean air pipe on top (2) with the resonator (3).
The resonator (3) must engage audibly in the rubber mounts.
- Tighten clamp (1).
TIGHTENING TORQUES SPECIFICATION
| Upper clean air pipe to lower clean air pipe | ||
|---|---|---|
| Hose clamp | Tightening torque | 3 Nm |
Follow-up work
- Refer to INSTALLING INTAKE SILENCER HOUSING .
