Install all ignition coils

NOTE: The description is provided only at one component. The procedure is the same for all other components.

Install ignition coil

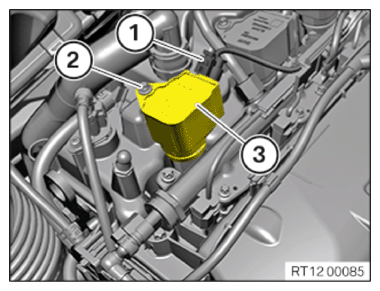

Install ignition coil (3).

Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

Ignition coil
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
The connector (1) must engage audibly.

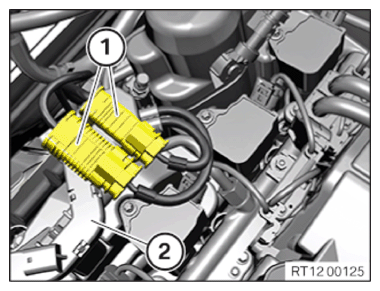

Mount the connector (1) of the Lambda oxygen sensor and the oxygen sensor monitor on the cable duct (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the ignition coils of cylinder bank 2

Precondition

Ignition is switched off.

NOTE: RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.

When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).

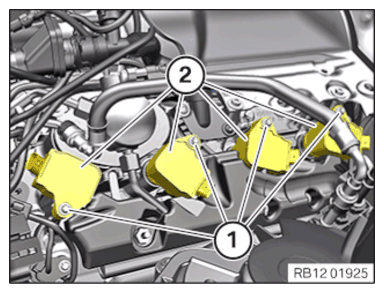

Feed in the ignition coils (2) and install them.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Ignition coil
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

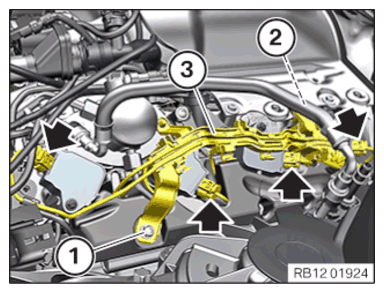

Feed in and install the cable clip (3).

Tighten down screw (2).

TIGHTENING TORQUES SPECIFICATION

Wiring harness on the cylinder head cover
M6x16 screw	Tightening torque	10 Nm
Nut M6	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten nut (1).

TIGHTENING TORQUES SPECIFICATION

Wiring harness on the cylinder head cover
M6x16 screw	Tightening torque	10 Nm
Nut M6	Tightening torque	10 Nm

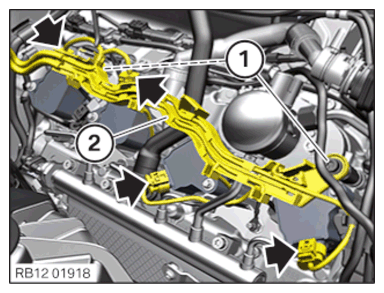

Connect and lock connectors (arrows).
The connectors (arrows) must audibly engage.

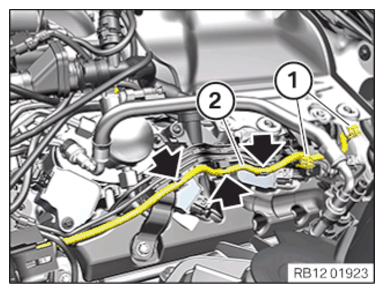

Feed the cable (2) into the bracket (arrows).
Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install ignition coils of cylinder bank 1

Precondition

Ignition is switched off.

NOTE: RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.

When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

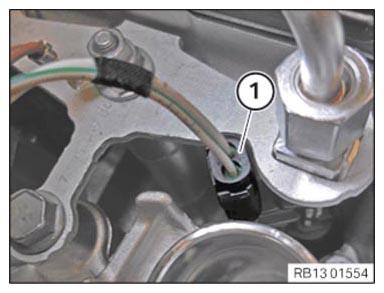

Check all connectors (1) on the injectors again to ensure they are correctly fitted.
Check that all connectors are plugged in correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

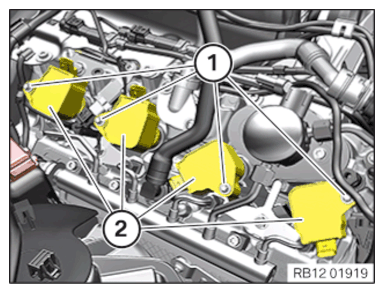

Feed in the ignition coils (2) and install them.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Ignition coil
screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the cable clip (2).

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Wiring harness on the cylinder head cover
M6x16 screw	Tightening torque	10 Nm
Nut M6	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock connectors (arrows).
The connectors (arrows) must audibly engage.

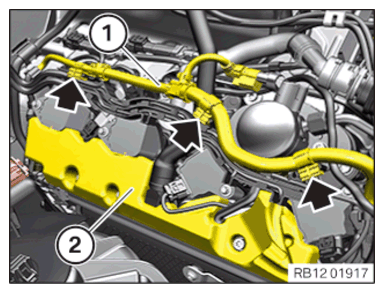

Guide in and install cover (2).
Insert and install cable (1).
Secure the clamps (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
