Remove door lock

WARNING: Airbag unit .
Danger! Immobilization period-threatening injuries!

Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: SAFETY REGULATIONS ON HANDLING COMPONENTS WITH GAS GENERATORS .

Preliminary work

Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
Refer to PREPARING THE SPECIAL TOOL .
Refer to REMOVING THE OUTER FRONT WINDOW CHANNEL STRIP .
Refer to RELEASING THE FRONT DOOR WINDOW GLASS .
Refer to REMOVING FRONT DOOR TRIM PANEL .
Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE FRONT MODULE BRACKET .
Refer to REMOVING FRONT DOOR WINDOW GLASS .
Refer to PARTIALLY RELEASING REAR INNER WINDOW CHANNEL STRIP .
Refer to REMOVING THE FRONT OUTSIDE DOOR HANDLE .

Remove plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

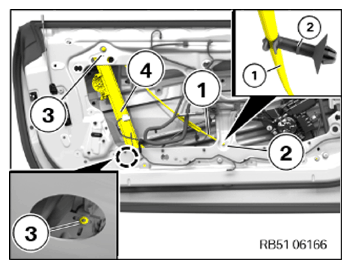

Detach the Bowden cable (1) from the clip (2).
Loosen nuts (3).
Carefully push the power windows (4) to the side.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip the clips (1) and the place the wiring harness (2) aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock and disconnect the electrical plug connection (1) on the door lock (2).
Unclip clip (3).
Feed the vehicle wiring harness (4) out of the guide (5) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
On equipment specification with soft-close automatic:
Unlock and disconnect plug connections (1).
Unclip the clip (2) and the place the wiring harness (3) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

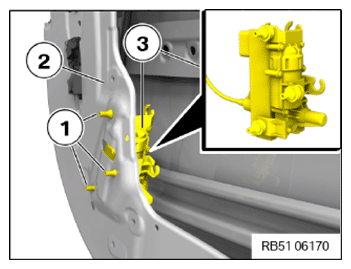

On equipment specification with soft-close automatic:
Release the rubber mount (1) on the door (2).
Feed the soft-close motor (3) with the rubber mounts (1) out of the door (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove seal (1) for the external door handle.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Slide the outside door handle support (2) forwards and feed it out inwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Unclip locking rod (1).
Loosen screws (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

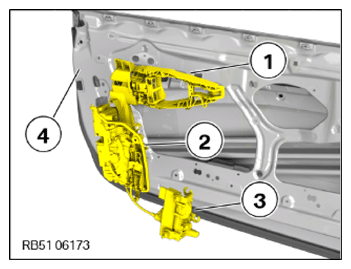

On equipment specification with soft-close automatic:
Feed the outside door handle support (1) with the door lock (2) and the soft-close automatic (3) out of the door (4).
Make sure that the seal of the door lock (2) is not damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

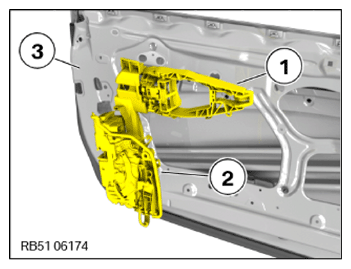

Feed the outside door handle support (1) with the door lock (2) out of the door (3).
Make sure that the seal of the door lock (2) is not damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
