Release the front door window glass
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

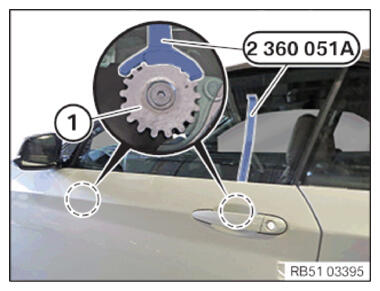

- Release the multi-point screws (1) at the door window glass with the special tool 2 360 051
A by 2 revolutions.
- Move the door window glass downwards by half.
Courtesy of BMW OF NORTH AMERICA, INC.
|
