Installing The Left And Right Tailgate Hinges

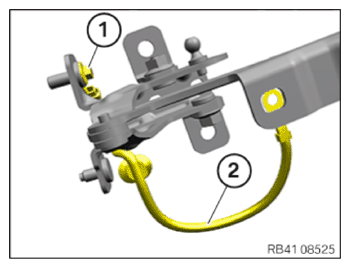

• For replacement: Position the ground cable (2) on hinge and tighten the nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Ground cable on tailgate hinge
  Hexagon nut with washer
  	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

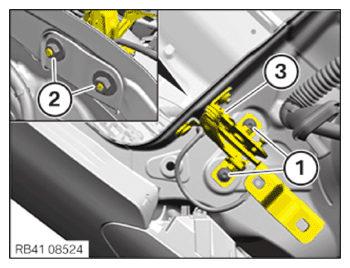

• Position the hinge (3) on the body.

  Tighten screws (1) and nuts (2).

  TIGHTENING TORQUES SPECIFICATION



  Tailgate hinge retaining bracket on the body
  Oval-head screw M8
  	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Tailgate hinge to body
  Nut M8
  	tightening torque	19 Nm

Follow-up work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to ADJUSTING THE TAILGATE HINGES .
• Refer to ADJUSTING THE TAILGATE .
• Refer to INSTALLING THE TENSION SPRING FOR THE LEFT TAILGATE .
• Refer to MOUNTING THE HYDRAULIC CYLINDER FOR THE TAILGATE ON THE RIGHT .
• Refer to INSTALLING THE COVER FOR THE WATER CHANNEL .
