Mounting the hydraulic cylinder for the tailgate on the right
Mounting the hydraulic cylinder for the tailgate on the right

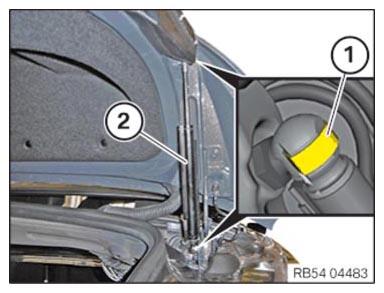

Check that the retaining clips (1) on the hydraulic cylinder (2) are fitted correctly.
Clip the hydraulic cylinder (2) into place on the corresponding ball-hubs.
