Adjusting the tailgate

Check

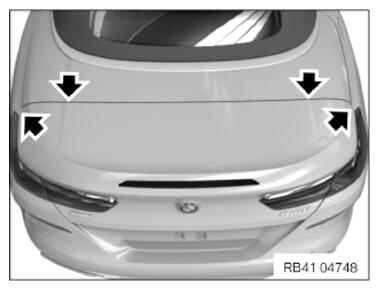

• Check the gap dimensions (arrows) between the tailgate and convertible top compartment lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Gap dimension of convertible top cover to trunk lid
1 Convertible top cover; 2 trunk lid Courtesy of BMW OF NORTH AMERICA, INC.	a  4.5 +0.9-0.9 mm
	b (convertible top closed)  0 +1.2-1.2 mm
	b (convertible top open)  0 +1.5-0.9 mm

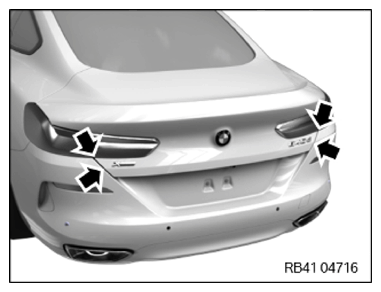

• Check the gap dimensions (arrows) between trunk lid and rear side panels.

Gap dimension rear quarter panel to trunk lid
1 rear quarter panel; 2 trunk lid Courtesy of BMW OF NORTH AMERICA, INC.	a 4.0 +1.2-1.2 mm
	b 0.4 +1.4-1.4 mm

Result

» If the gap dimensions between the trunk lid and convertible top compartment lid or between the trunk lid and rear side panels do not meet the specifications.

Measure

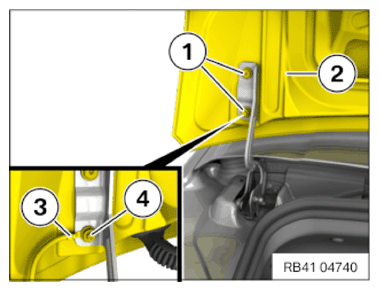

• Adjust the tailgate on the tailgate hinge.

• Loosen nut (4).
• (3) Remove ground cable.
• Slacken screws (1) until the trunk lid (2) can be shifted.
• Move the trunk lid (2) longitudinally and transversely until the trunk lid (2) has the specified gap dimensions to the convertible top compartment lid and rear side panels.
• Tighten the screws (1) on the trunk lid (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate hinge on trunk lid
Hexagon screw, M8 x 18	Tightening torque	19 Nm

• Position ground cable (3).
• Tighten nut (4).

Ground cable on tailgate hinge
Hexagon nut with washer	tightening torque	2.3 Nm

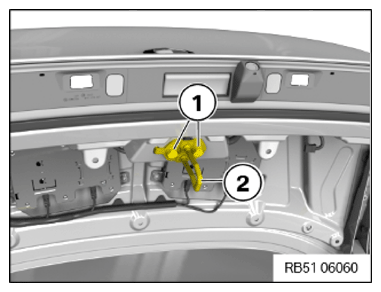

Install striker for the tailgate latch

• Position striker for the tailgate latch (2) and tighten the screws (1).

Striker to rear lid
Hexagon screw M8x20	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust the lower part of the tailgate lock lower section

Check

• Check the gap dimensions (arrows) between the trunk lid and rear bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	a 4.3 +1.5-1.5 mm
	b 0.4 +1.7-1.7 mm

Result

» The gap dimensions between the trunk lid and the read bumper cover do not meet the specifications.

Measure

• Adjust the lower part of the tailgate lock.

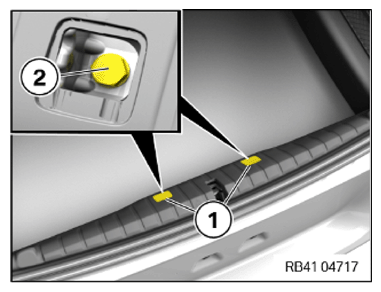

• Lever out the covers (1) with a suitable screwdriver and remove.
• Loosen screws (2) until the tailgate lock can be shifted.
• Adjust tailgate lock so that the tailgate has the predefined gap dimension relative to the rear bumper panel.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).

Tailgate lock to body
Hexagon screw M8x20	Tightening torque	19 Nm

• Clip in the covers (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

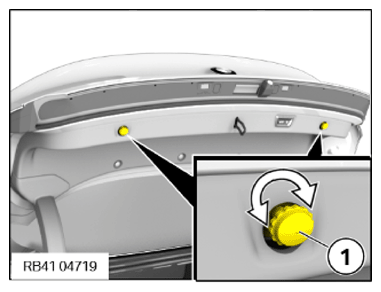

• Adjust the stop pad (1) of the trunk lid by twisting it.

Courtesy of BMW OF NORTH AMERICA, INC.
