Adjusting the tailgate hinges

• Close the convertible top compartment lid.
• Install tailgate.

Opening the tailgate lock

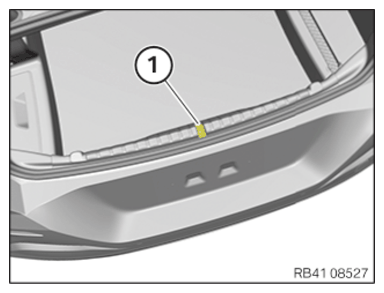

• Open tailgate lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Close tailgate slowly and check for body ground. If necessary, reposition the tailgate hinges.

Check

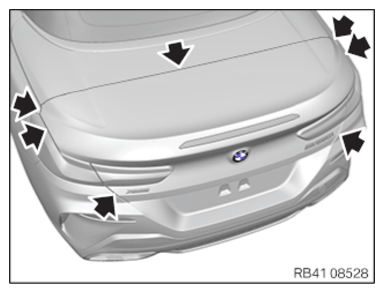

• Check the gap dimensions (arrowed) between trunk lid and adjacent components.

Courtesy of BMW OF NORTH AMERICA, INC.

Gap dimension of convertible top cover to trunk lid
1 Convertible top cover; 2 trunk lid Courtesy of BMW OF NORTH AMERICA, INC.	a	4.5 +0.9-0.9 mm
	b (convertible top closed)	0 +1.2-1.2 mm
	b (convertible top open)	0 +1.5-0.9 mm

Gap dimension rear quarter panel to trunk lid
1 rear quarter panel; 2 trunk lid Courtesy of BMW OF NORTH AMERICA, INC.	a	4.0 +1.2-1.2 mm
	b	0.4 +1.4-1.4 mm

Gap dimension of rear quarter panel to convertible top cover
1 Rear quarter panel; 2 convertible top cover Courtesy of BMW OF NORTH AMERICA, INC.	a	4.0 +1-1 mm
	b	0.5 +1.2-1.2 mm

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel Courtesy of BMW OF NORTH AMERICA, INC.	a	4.3 +1.5-1.5 mm
	b	0.4 +1.7-1.7 mm

Result

» Gap dimensions do not correspond to the specifications.

Measure

• Adjust tailgate hinge.

Remove striker for the tailgate latch

• Loosen screws (1).
• Remove striker for the tailgate latch (2).

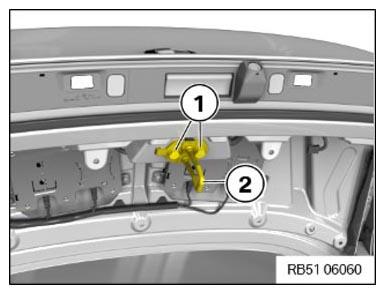

Courtesy of BMW OF NORTH AMERICA, INC.

• Open the convertible top compartment lid.

• Slacken the nuts (1) and (2) until the tailgate hinge can be shifted.
• Shift the tailgate hinge vertically until the tailgate has the specified gap dimension to the adjacent components.
• Tighten the nuts (1) and (2).

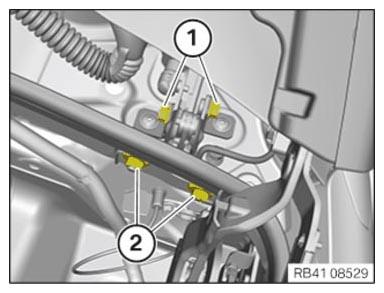

Courtesy of BMW OF NORTH AMERICA, INC.

Tailgate hinge to body
Nut M8	tightening torque	19 Nm

Angle bracket on tailgate hinge
Nut M8	tightening torque	19 Nm
