Removing The Side Panel On The Right
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... Raise the vehicle using a vehicle lift.
NOTE:
RISK OF DAMAGE
Mechanical effects .
Paint damage .
Mechanical effects .
Paint damage .
- Mask those working areas at risk with yellow plastic adhesive tape.
- Remove and install heavy or bulky components with the aid of another person/other persons.
Preliminary work
- Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to REMOVE THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVE THE RECORDING OF THE RIGHT HOOD SEAL .
- Refer to REMOVE DOOR SILL COVER STRIP, INTERIOR RIGHT .
- Refer to REMOVING THE ILLUMINATED RIGHT-HAND FRONT SILL TRIM .
- Refer to REMOVE THE RIGHT DOOR SILL TRIM PANEL .
- Refer to REMOVE FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVE THE FRONT RIGHT WHEEL ARCH COVER FRONT SECTION .
- Refer to REMOVE REAR SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to REMOVE WASHER FLUID RESERVOIR .

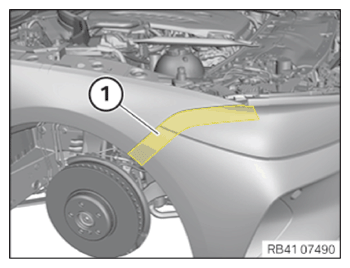

- Mask the area (1)
on the headlight and on the bumper cover with plastic adhesive tape.
- Mask the area (1)

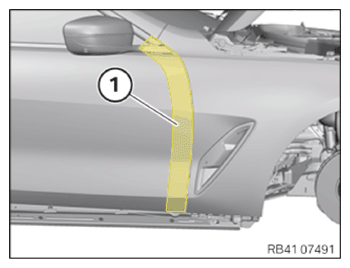

of the door with plastic adhesive tape.

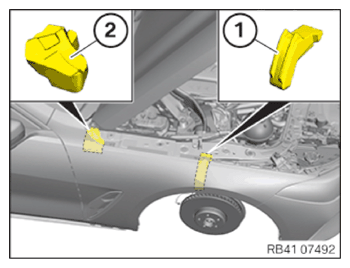

- Remove the noise insulators (1)
and (1)
.

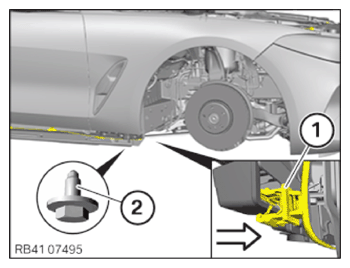

- Release the screws (1) of the bumper cover (2) .
- Release the bumper cover (2)
from the side panel.

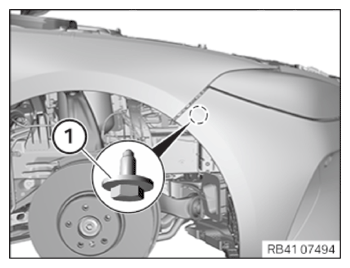

- Loosen screw (1)
.
- Release the cable (1) from the bracket of the side panel.
- Loosen screw (2)
.

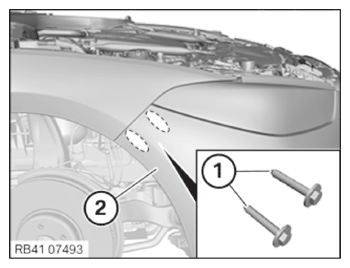

- Loosen screws (1)
.
- Open the front door.

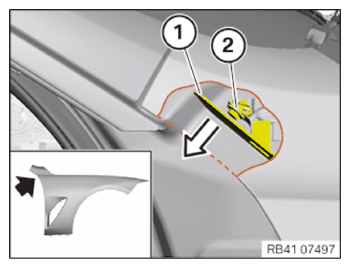

Pull the sealing (1) down slightly in the direction of the arrow.
- Loosen screw (2) .
- Close front door.

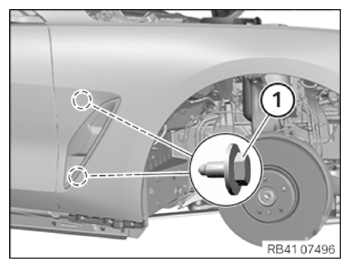

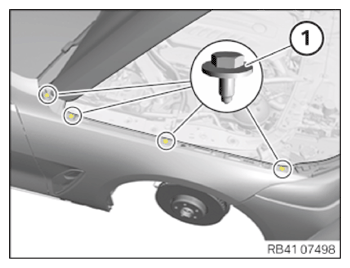

- Loosen screws (1)
.

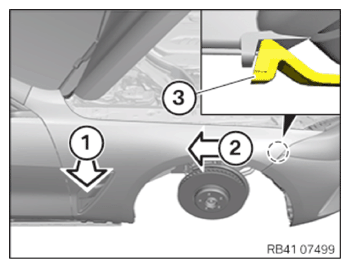

- Release the side panel in the sequence and direction shown.
- Release the side panel outward in the lower area of the A-pillar (1) .
- Release the side panel in the area of the headlights (2)
towards the rear.
Pay attention to the headlight locking mechanism (3) .
