Remove washer fluid reservoir
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly
.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- Refer to REMOVING THE RECORDING OF THE RIGHT HOOD SEAL .
- Refer to REMOVING FRONT LEFT OR RIGHT WHEEL .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .

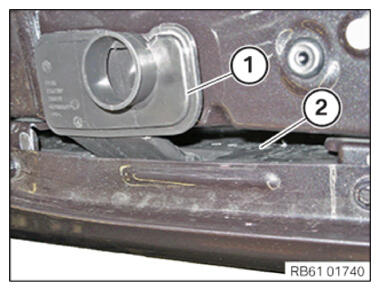

- Detach filler channel (1) from the washer fluid reservoir (2) to the top.

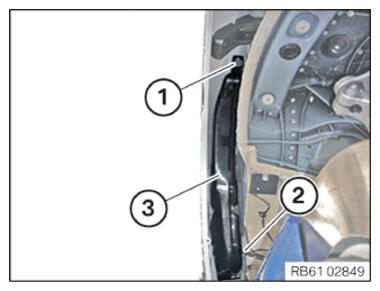

- Loosen screw (1).
- Feed the hose pipe (2) out of the guide.

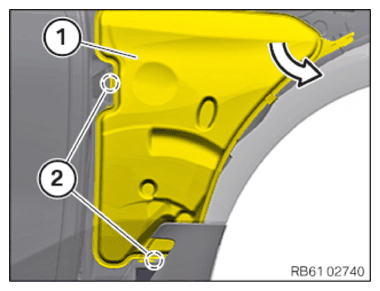

- Thread the washer fluid reservoir (1) in arrow direction out of the holders (2).

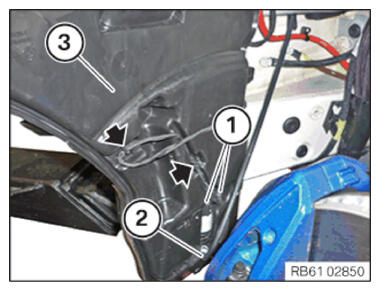

- Unlock and disconnect all connectors (1).
- Unclip the cable from the washer fluid reservoir (3) (arrows).
- Unlock hose pipe (2) and disconnect.
