Installing the front strut

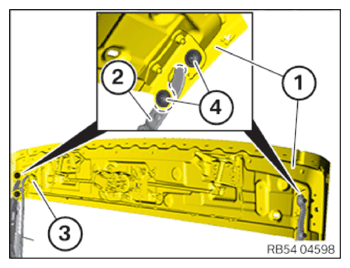

• Position the front strut (1) on the previously made marks on the convertible top linkage (2).
• Tighten down screws (4).
  TIGHTENING TORQUES SPECIFICATION



  Front strut to convertible top linkage
  Screw	tightening torque	35 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (3) and lock.

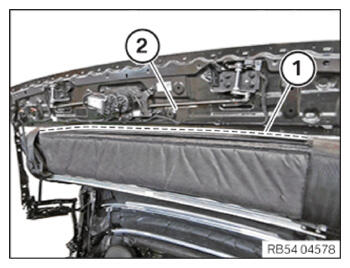

• Fasten the retaining strip for the convertible top fabric (1) on the convertible top bow (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fold the convertible top fabric (1) forwards.

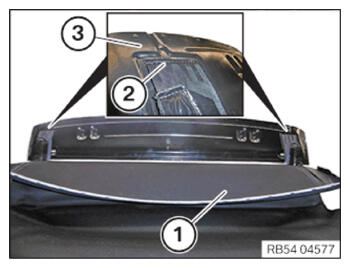

• Feed in and attach the retaining straps (2) on the convertible top bow (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

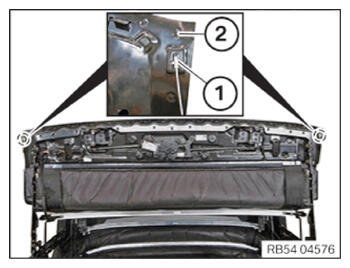

• Hook tension cables (1) in the convertible top bow (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

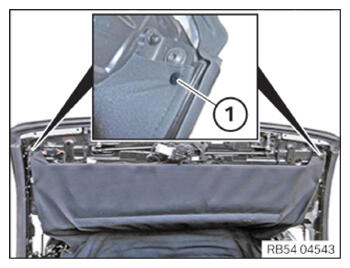

• Put convertible top fabric (2) over the convertible top bow from the outside (3) (arrow.
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

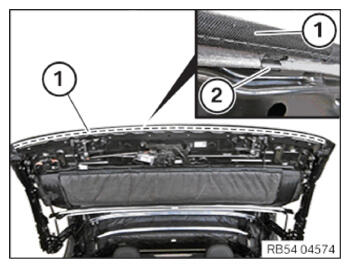

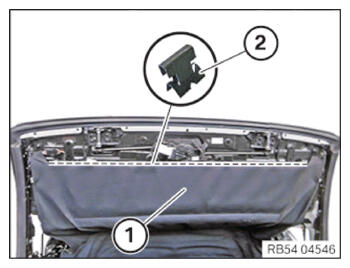

• Hang the convertible top fabric on the convertible top bow (1) along the marked area on the retaining clips (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

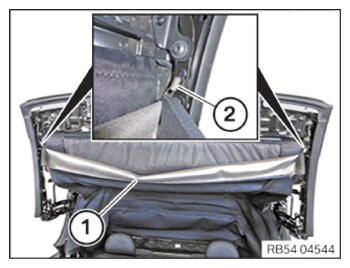

• Attach the headlining (1) on the springs (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the headlining (1) on the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten the blind rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SEALING CARRIER OF THE LEFT AND RIGHT WINDSHIELD PANEL SEALS .
• Refer to INSTALLING THE SEAL FOR THE WINDSHIELD PANEL .
• Refer to INSTALLING THE WINDSHIELD PANEL TRIM .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to ADJUSTING THE REAR SIDE WINDOW .
