Installing the windshield panel trim

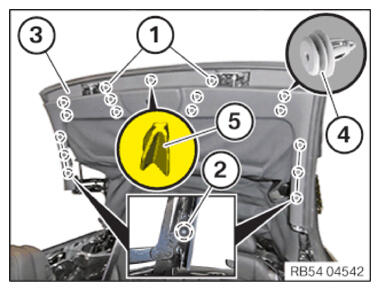

- Replace the clips (4).
Parts: Clips
- Clip the windshield panel trim (3) at the centering (5) and at the clips (4).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Windshield panel trim to front convertible top | ||
|---|---|---|
| Screw | tightening torque | 2 Nm |
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Windshield panel trim to side convertible top | ||
|---|---|---|
| Screw | tightening torque | 3 Nm |

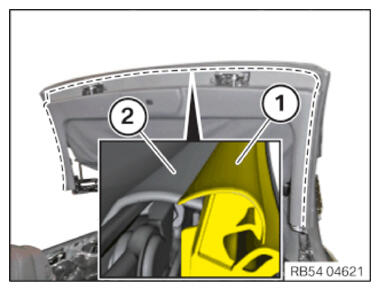

- Ensure that the seal (1) is positioned above the cowl cover (2).
If necessary, correct the position of the seal (1) with the special tool 2 298 505 carefully.
