Installing the seal carrier of the left and right windshield panel seals
NOTE:
Perform the steps on the left and right side.
Installing the seal carrier for the windshield panel seal
NOTE:
Description is for left component only. Procedure on the right side is identical.

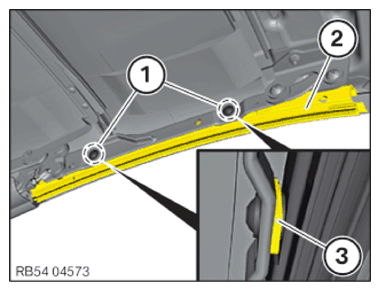

- Position the seal carrier for the windshield panel seal (2).
- Turn in screw (1) several rotations.
- Position the washers (3).
- Line up the screws (1) at the previously defined marks and tighten them.
TIGHTENING TORQUE SPECIFICATIONS
| Seal carrier to convertible top | ||
|---|---|---|
| Screw | tightening torque | 11 Nm |
