Installing dashboard trim

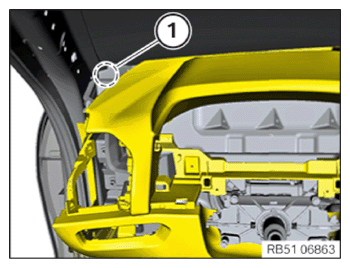

• Tighten the screw (1) on left and right in the area of the A-pillar.
  TIGHTENING TORQUES SPECIFICATION



  Dashboard to support
  Screw	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

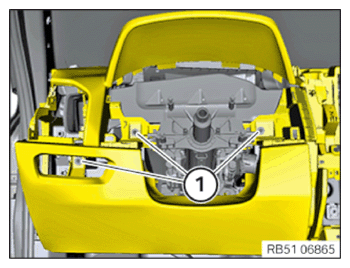

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Dashboard to support
  Screw	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

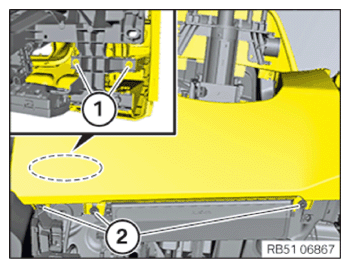

• Tighten down screws (1) and (2).
  TIGHTENING TORQUES SPECIFICATION



  Dashboard to support
  Screw	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

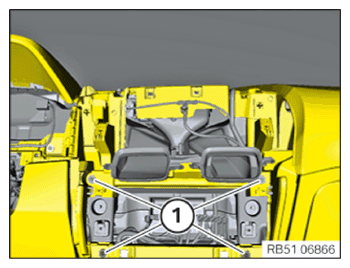

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Dashboard to support
  Screw	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

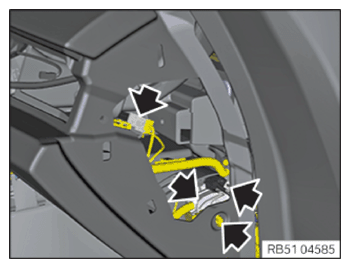

• Connect and lock all of the connectors and fasten them into the cable bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

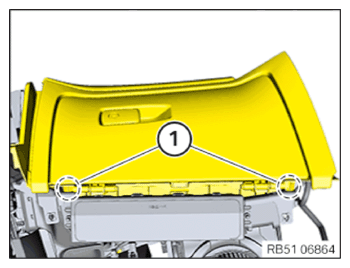

• Tighten the screws (1) from the back at the rear of the glove compartment.
  TIGHTENING TORQUES SPECIFICATION



  Dashboard to support
  Screw	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Open glovebox.

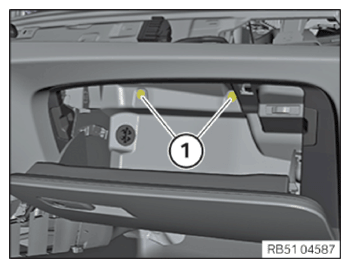

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Dashboard to support
  Screw	tightening torque	2.3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Conduct the following operation with the assistance of a second person.

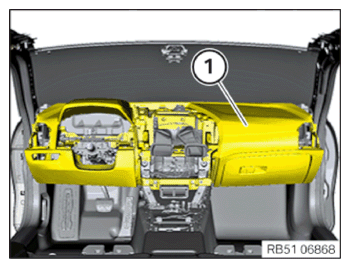

• Place the dashboard trim (1) in the vehicle.
• Carefully feed in the dashboard trim (1); while doing this, feed in the wiring harness and fasten it.

  Connect connectors and lock.

• Position the dashboard trim (1) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
