Install the Headunit High (HU-H)
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
RISK OF DAMAGE
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.
Damage to the head unit.
The hard disk of the head unit can be damaged by vibrations.
- Carry out mechanical work on the head unit and adjacent components with care.

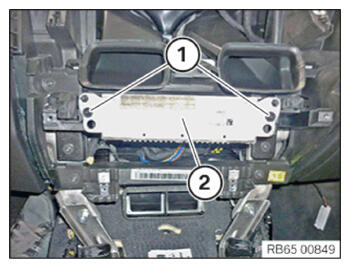

- Position the head unit (1).
- Connect all connectors in the marked area in the correct assembly sequence and lock them in place.
- Correctly position the head unit (2).
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Head unit on holder/holder on support Screw tightening torque 1.8 Nm
Follow-up work
- Refer to INSTALLING HOLDER IN THE CENTER CONSOLE .
- Refer to INSTALLING THE CENTER STACK MODULE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to INITIALIZING COMPONENT PROTECTION .
