Installing rear differential

NOTE: Perform the steps on the right and left side.

Fold open the assembly protection ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Raise the rear differential (1) somewhat with the special tool 0 496 009 (33 5 200) .
Insert the left-hand output shaft (3) into the rear differential (1).
Turn the rear differential (1) with the special tool 0 496 009 (33 5 200) to the right and insert the right output shaft (2) into the rear differential (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the right and left side.

Pull on the tab of the installation protection ring (1) until one of the two predetermined breaking points breaks.
Pull out and dispose of the installation protection ring (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Lift the rear differential (1) using special tools 0 496 009 (33 5 200) and 0 490 133 (00 2 030) and position on the rear axle support.
Make sure that the special tool 0 496 080 (33 5 206) is not pinched between the rear differential (1) and the dust plate of an output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

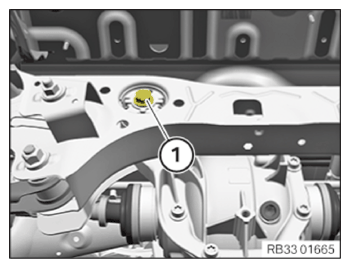

Insert screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace nut (1).
Parts: Nut
Feed through the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws (1).
Parts: Screws
Pilot the screws (1) by hand and tighten.

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, front
M12 Replace screw.	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screw (1). In doing so, counter support at the nut.

TIGHTENING TORQUE SPECIFICATION

Rear differential to rear axle carrier, rear
M14 Replace nut.	Tightening torque .	175 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen and remove the tensioning strap 0 496 080 (33 5 206) from the rear differential (1) .
Lower the special tools 0 490 133 (00 2 030) and 0 496 009 (33 5 200) and set them aside .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work
