Install the cover of the camber control arm on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover of the camber control arm

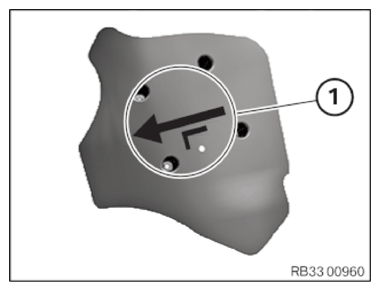

- The installation location and direction of installation (1)
must be noted.
Direction of installation (1) :
The arrow on the cover points in the driving direction.
Installation location:
- L = left
- R= right

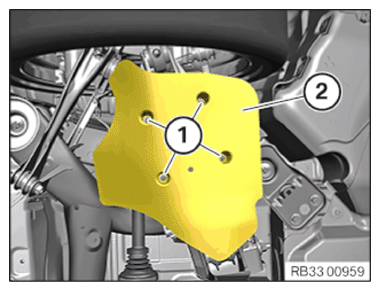

- Position cover (2) of the camber link on the camber link.
- Replace nuts (1)
.
Parts: Nuts
- Tighten nuts (1)
.TIGHTENING TORQUE SPECIFICATION
Cover to camber control arm M6 Replace nuts. tightening torque 6 Nm
