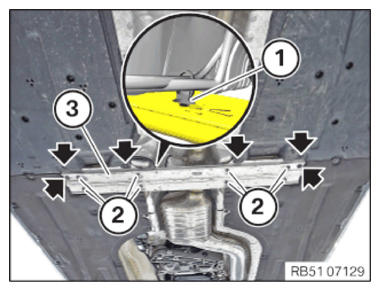

Install the connecting supports on the tunnel
- Insert and install the connecting support (3) on the tunnel.
- Tighten down screws (2).
- Tighten the screws (arrows).TIGHTENING TORQUE SPECIFICATION
Connecting support to tunnel M8x25 screw tightening torque 20 Nm Screw tightening torque 3 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Secure the clamp (1).
