Installing the engine encapsulation on the exhaust side

Preliminary work

• Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING THE SEAL FOR THE HOOD REAR .
• Refer to REMOVING ACOUSTIC COVER AT REAR .
• Refer to REMOVING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to REMOVING CHARGE AIR LINE .
• Refer to REMOVING THE FRONT ACOUSTIC COVER FOR THE ENGINE .
• Refer to REMOVING THE LAMBDA OXYGEN SENSOR .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
• Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
• Refer to REMOVING THRUST FIELD .
• Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY .
• Refer to DRAINING THE COOLANT FROM THE HIGH-TEMPERATURE COOLING SYSTEM .
• Refer to CONNECTING THE COOLANT LINES FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
• Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL .
• Refer to REMOVING COMPLETE EXHAUST SYSTEM .
• Refer to REMOVING CATALYTIC CONVERTER .
• Refer to REMOVING THE COOLANT FEED LINE FOR THE EXHAUST GAS TURBOCHARGER .
• Refer to REMOVING THE COOLANT RETURNING LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to REMOVING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to REMOVING EXHAUST TURBOCHARGER .

Courtesy of BMW OF NORTH AMERICA, INC.

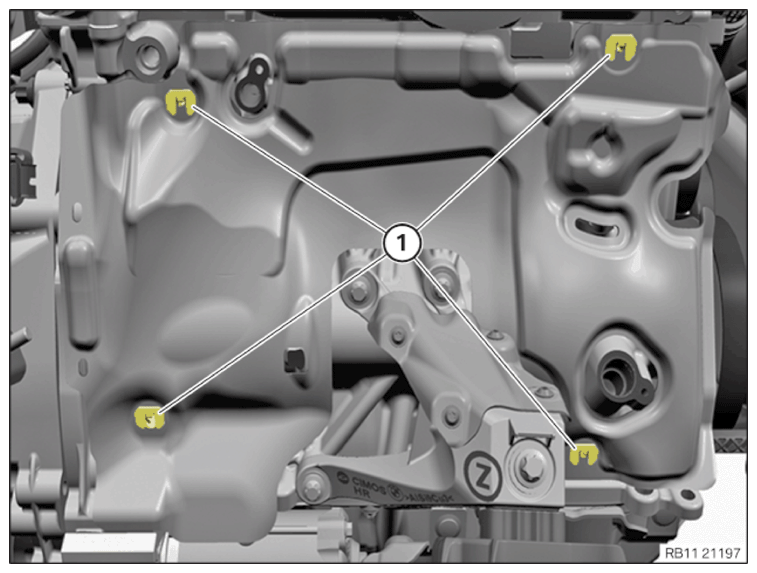

• Replace clips (1)  and (2)  .

  Parts:  Clips

  Courtesy of BMW OF NORTH AMERICA, INC.

• Check the engine encapsulation (1)  for damage, replace the engine encapsulation (1)  if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in engine encapsulation (1)  and position.

Courtesy of BMW OF NORTH AMERICA, INC.

• Fix clips (1)  using a standard screwdriver (2)  in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE OIL RETURN LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE COOLANT RETURNING LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING THE COOLANT FEED LINE FOR THE EXHAUST TURBOCHARGER .
• Refer to INSTALLING CATALYTIC CONVERTER .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
