Removing roller sunblind for the panorama glass roof
Preliminary work
- Refer to REMOVING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
- Refer to REMOVING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to REMOVING THE SUN VISORS AND COUNTER SUPPORT ON THE LEFT AND RIGHT .
- Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
- Refer to REMOVING SIDE TRIM PANEL, REAR LEFT AND RIGHT .
- Refer to REMOVING THE B-PILLAR TRIM PANEL AT LEFT AND RIGHT .
- Refer to REMOVING TRIM OF THE 3RD BRAKE LIGHT .
- Refer to LOWERING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) .
- Refer to REMOVING SLIDE/TILT SUNROOF COMPLETELY .
- Refer to REMOVING CROSS MEMBER .
- Shift the roller sunblind (1) to the rear on both sides, rolling it up a few cm.

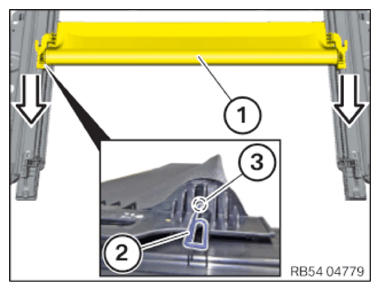

- Roll up the roller sunblind (1)
until it can be locked using a suitable tool (2)
(e.g. paperclip) above the mounting jig (3)
.

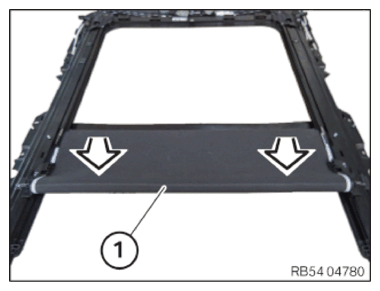

- Fully open the roller sunblind manually (1)
until you feel a slight resistance.NOTE: Perform the steps on the left and right side.

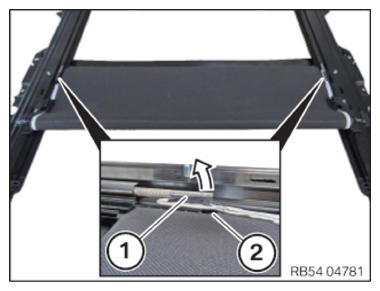

- Feed up the adjuster (1) out of the slider of the roller sunblind (2) .

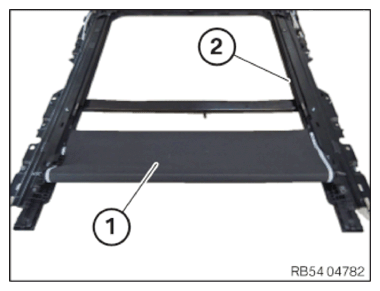

- Remove the roller sunblind (1) out of the slide/tilt sunroof frame (2) .
