Replacing the bumper cover
NOTE:
TECHNICAL INFORMATION
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, please read and comply with the following notes:
No labels may be attached in the radiation areas of the radar sensors.
The component may be painted if no radar sensors have been installed.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with the optional equipment S5ATA or S5AUA.
In order to guarantee the quality of the Driver Assistance functions in vehicles with concealed radar sensors, please read and comply with the following notes:
No labels may be attached in the radiation areas of the radar sensors.
The component may be painted if no radar sensors have been installed.
The following features can be used to identify whether radar sensors are installed on the vehicle:
Radar sensors are installed at the rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame).
Radar sensors are installed at the front and rear if the triangular warning light is located on the exterior mirror (in the mirror glass or on the mirror frame) in conjunction with the optional equipment S5ATA or S5AUA.
Preliminary work
- Refer to REMOVING RIGHT BACKREST SIDE SECTION .
- Refer to REMOVING THE REAR DOOR SILL COVER STRIP (ON ELECTRICAL REAR SEAT) .
- Refer to REMOVING RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .
- Refer to REMOVING THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (ALL EQUIPMENT VERSIONS) .
- Refer to REMOVING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANEL .
- Refer to REMOVING LEFT AND RIGHT REAR REFLECTORS .
- Refer to REMOVING THE REAR DIFFUSER .
- Refer to REMOVING THE TRIM ON THE LOWER BUMPER COVER .
- Refer to REMOVING THE REAR BUMPER COVER .
Remount ultrasonic sensors
- Unlock the detents (1) .
- Remove the ultrasonic sensor (2) towards the top.
- Remove all other ultrasonic sensors together with the wiring harness.
- Replace the ultrasonic sensors.
Parts: Ultrasonic sensors
- Snap all ultrasonic sensors into the bumper.
- Secure wiring harness.

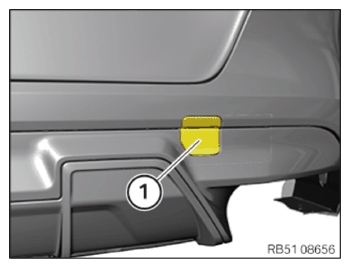

- Remount the trim (1).
Follow-up work
- Refer to INSTALLING THE REAR BUMPER COVER .
- Refer to INSTALLING THE TRIM ON THE LOWER BUMPER COVER .
- Refer to INSTALLING THE REAR DIFFUSER .
- Refer to INSTALLING THE LEFT AND RIGHT REFLECTOR .
- Refer to INSTALLING TAIL LIGHT ON LEFT AND RIGHT SIDE PANEL .
- Refer to INSTALLING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL (ALL EQUIPMENT VERSIONS) .
- Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
- Refer to INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .
- Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
- Refer to INSTALLING THE RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .
- Refer to INSTALLING THE REAR DOOR SILL COVER STRIP (ELECTRICAL REAR SEAT) .
- Refer to INSTALLING RIGHT BACKREST SIDE SECTION .
