Installing the left and right reflector
Installing rear reflector
NOTE:
Description is for left component only. Procedure on the right side is identical.
Check

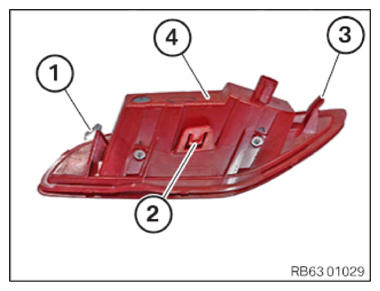

- Check the mounting clip (1)
, detents (2)
and the guide (3)
on the rear reflector (4)
for damage.
Result
» The mounting clip (1) , detents (2) or the guide (3) are damaged.
Measure
- Replace rear reflector (3)
.
Parts: Rear reflector

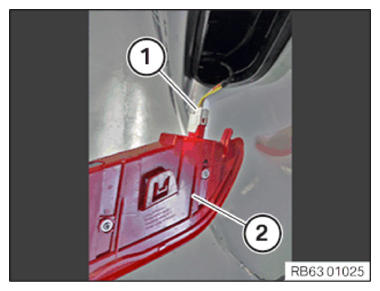

- Connect connector (1)
at rear reflector (2)
and lock.

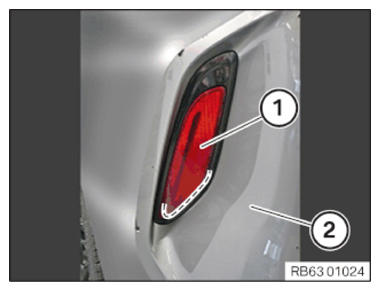

- First, place the rear reflector (1)
in the marked area, then engage it at the top in the bumper cover.
